Adjustable Clevis for Copper Tubing
Adjustable Clevis for Copper Tubing
SKU:PIP-2731c6
Durable Light Weight Adjustable Clevis for copper tubing suspension with easy adjustment and high load capacity. Compliant with Federal Specification WW-H-171-E (Type 12).
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Adjustable Clevis for Copper Tubing
$24.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis for Copper Tubing
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

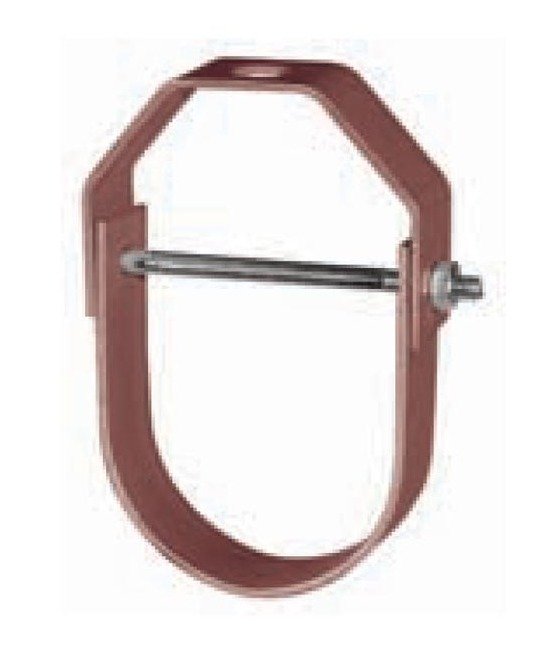

The Light Weight Adjustable Clevis is designed for suspending non-insulated, stationary copper tubes. Made of durable carbon steel with a copper plated finish, this clevis allows for easy adjustment up to 1 7/8 inches. With a maximum load capacity of 350 lbs, it provides sturdy support while maintaining versatility. Compliant with Federal Specification WW-H-171-E (Type 12), it meets stringent government procurement standards for reliability and performance.

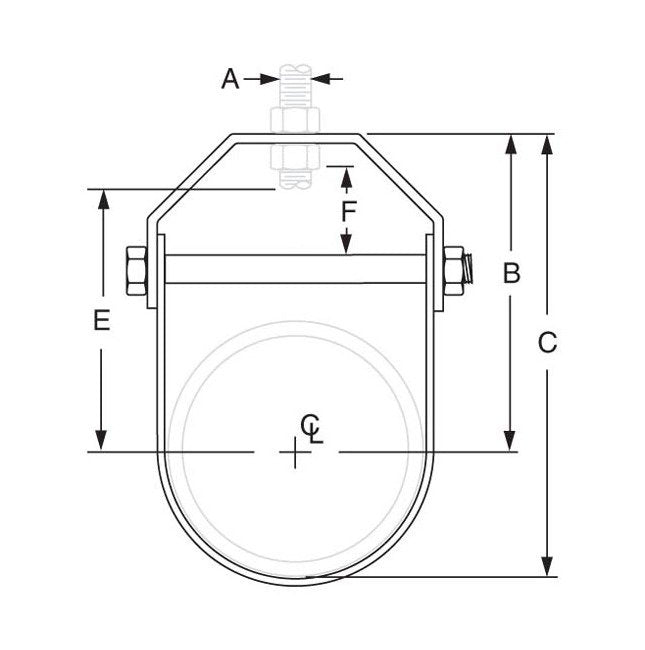

Product Specifications
Specifications Adjustment F
1 5/16 inches
Specifications Dimension B
3 27/32 inches
Specifications Dimension C
5 9/32 inches
Specifications Dimension D
2 3/4 inches
Specifications Finish
Copper Plated | Yellow Dichromate
Specifications Material
Carbon Steel
Specifications Maximum Load
350 lbs
Specifications Rod Size A
3/8 inches
Specifications Rod Take Out E
3 1/4 inches
Specifications Tube Size
2 1/2 inches
Specifications Weight
0.48 lbs
