Adjustable Clevis for Copper Tubing - 2-inch

Name: Adjustable Clevis for Copper Tubing - 2-inch
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-31bd09
Price: 24.99 USD
Availability: OutOfStock

SKU:PIP-31bd09

Durable Adjustable Clevis for Copper Tubing - 2-inch, Carbon Steel, Copper Plated Finish, Max Load 250 lbs

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

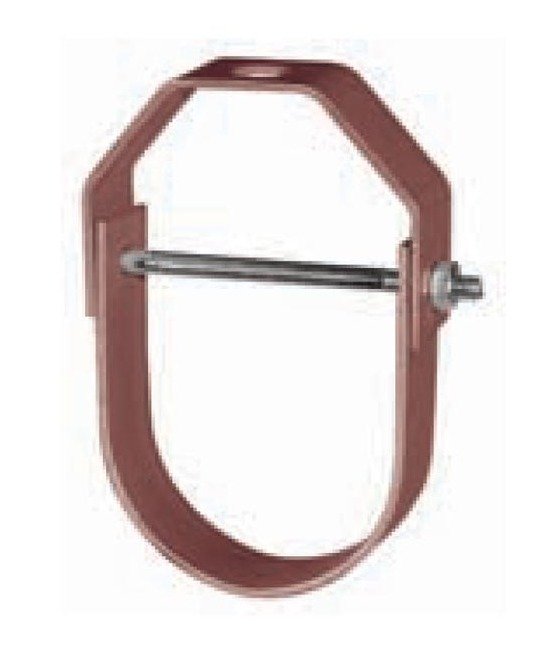

The Light Weight Adjustable Clevis for copper tubing sizes ranging from 1/2" to 4" offers a durable solution for suspending non-insulated copper tubes. Made from high-quality carbon steel with a copper-plated finish, this clevis allows for easy adjustment up to 1 7/8" and can support a maximum load of 250 lbs. Meeting Federal Specification WW-H-171-E (Type 12) standards, it ensures reliable performance and ease of installation without the need for temporary pipe support. Lock the hanger rod and nuts securely in place after adjustment for added stability and efficiency.

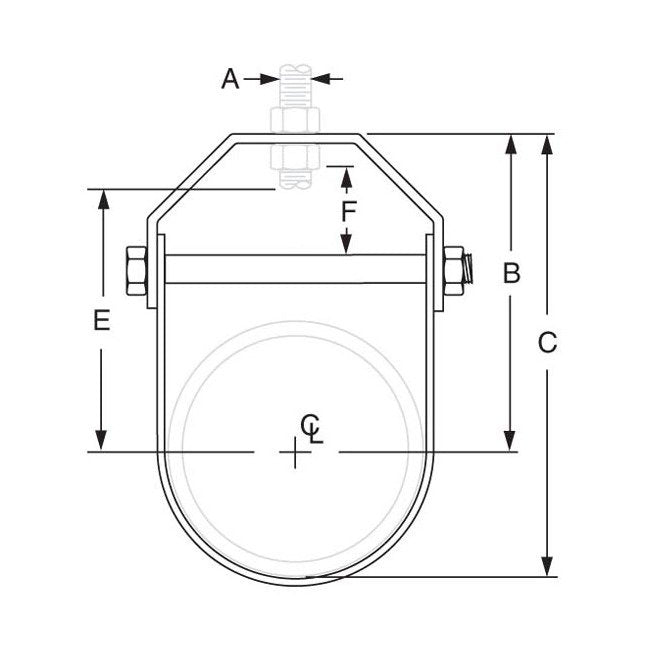

Product Specifications

Specifications Adjustment F

1 3/16 inches

Specifications Dimension B

3 11/32 inches

Specifications Dimension C

4 17/32 inches

Specifications Dimension D

2 5/16 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

250 lbs

Specifications Rod Size A

3/8 inches

Specifications Rod Take Out E

2 7/8 inches

Specifications Tube Size

2 inches

Specifications Weight

0.26 lbs

Adjustable Clevis for Copper Tubing - 2-inch
