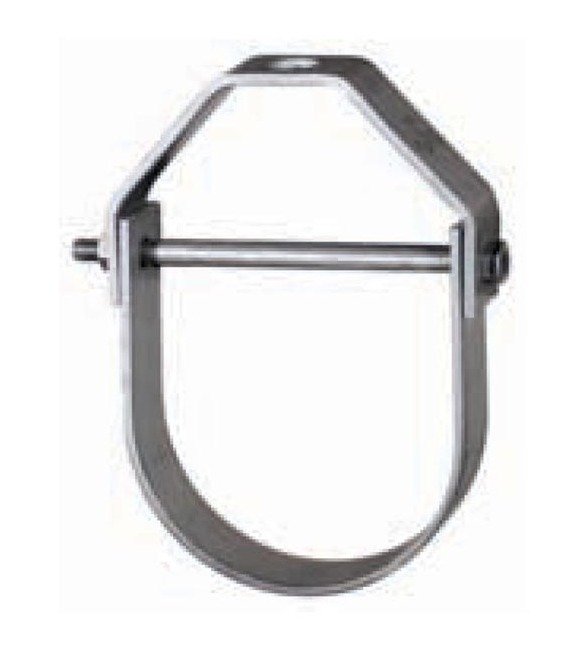

Adjustable Clevis Hanger - 14" Pipe Size, Epoxy Coated
Adjustable Clevis Hanger - 14" Pipe Size, Epoxy Coated
SKU:PIP-5f2fa4
Durable Adjustable Clevis Hanger for stationary pipe line suspension, 14" pipe size, Epoxy Coated, with a 4200 lbs maximum load capacity. Compliant with industry standards.
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - 14" Pipe Size, Epoxy Coated
$55.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - 14" Pipe Size, Epoxy Coated
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Clevis Hanger is designed for stationary pipe line suspension, offering durability in carbon steel with epoxy coating for enhanced corrosion resistance. This hanger allows for vertical adjustments without pipe removal, with a maximum load capacity of 4200 lbs. Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards, UL, ULC Listed and FM Approved. Ensure secure installation to prevent bolt bending and maintain structural integrity for safe and efficient pipe support.

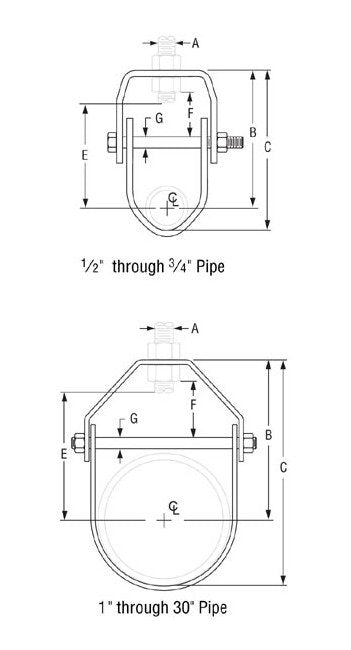

Product Specifications
Specifications Adjustment F
2 11/16 inches
Specifications Dimension B
12 9/16 inches
Specifications Dimension C
19 9/16 inches
Specifications Dimension G
3/4 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
4200 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
14 inches
Specifications Rod Size A
1 inches
Specifications Rod Take Out E
10 11/16 inches
Specifications Span
25 ft.
Specifications Weight
12.50 lbs
