Adjustable Clevis Hanger 18'
Adjustable Clevis Hanger 18'
SKU:PIP-90aa6d
Adjustable Clevis Hanger - Carbon steel with epoxy coating, maximum load 4800 lbs, compliant with Federal standards. UL, ULC Listed & FM Approved.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger 18'
$89.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger 18'
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

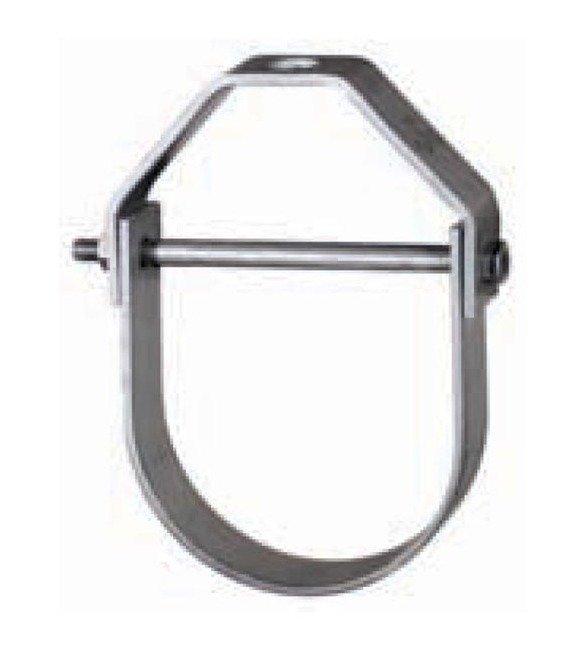

The Adjustable Clevis Hanger in carbon steel with epoxy coating is designed for the suspension of stationary pipe lines, offering a maximum load capacity of 4800 lbs. It features a yoke design on the outside of the lower U-strap to minimize bolt bending, ensuring structural integrity. With approvals complying with Federal Specification A-A-1192A (Type 1), WW-H-171-E (Type 1), and MSS-SP-69 (Type 1), this hanger is UL, ULC Listed, and FM Approved for sizes 3/4' through 8'. Easily adjustable vertically without pipe removal, it provides a secure and efficient solution for pipe installations.

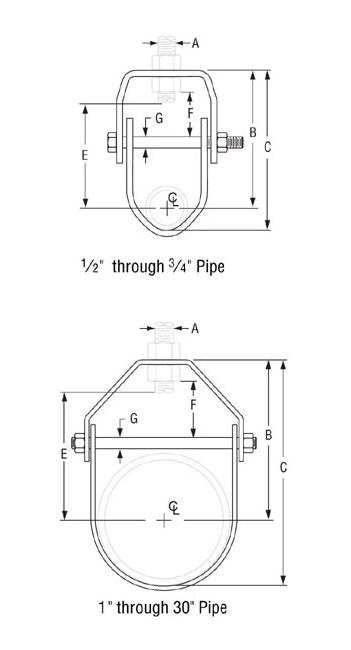

Product Specifications
Specifications Adjustment F
3 13/16 inches
Specifications Dimension B
15 15/16 inches
Specifications Dimension C
24 15/16 inches
Specifications Dimension G
1.00 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
4800 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
18 inches
Specifications Rod Size A
1 inches
Specifications Rod Take Out E
13 15/16 inches
Specifications Span
28 ft.
Specifications Weight
22.25 lbs
