Adjustable Clevis Hanger - 3 1/2" Carbon Steel
Adjustable Clevis Hanger - 3 1/2" Carbon Steel
SKU:PIP-6205a5
Versatile Adjustable Clevis Hanger for stationary pipes, carbon steel, 3 1/2" size, compliant with Federal and UL standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - 3 1/2" Carbon Steel
$49.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - 3 1/2" Carbon Steel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

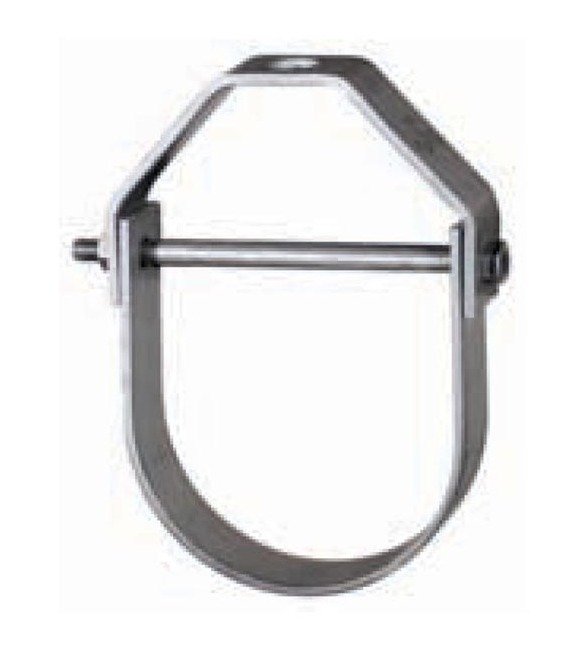

The Adjustable Clevis Hanger in carbon steel offers versatile support for stationary pipe lines. With a span of 13 ft. and a maximum load of 1350 lbs, this hanger is suitable for various pipe sizes up to 3 1/2 inches. Its innovative design minimizes bolt bending and allows vertical adjustments without pipe removal. Compliant with Federal Specification A-A-1192A, WW-H-171-E, MSS-SP-69, and UL, ULC Listed, and FM Approved standards, it ensures secure suspension and reliable performance.
Product Specifications

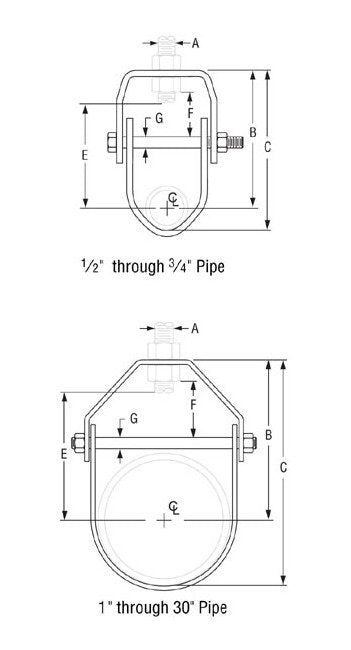

Specifications Adjustment F
1 13/16 inches
Specifications Dimension B
5 1/16 inches
Specifications Dimension C
7 1/16 inches
Specifications Dimension G
3/8 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
1350 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
3 1/2 inches
Specifications Rod Size A
1/2 inches
Specifications Rod Take Out E
4 3/16 inches
Specifications Span
13 ft.
Specifications Weight
1.10 lbs
