Adjustable Clevis Hanger - 5 Inches, Epoxy Coated
Adjustable Clevis Hanger - 5 Inches, Epoxy Coated
SKU:PIP-ea69b4
Durable Adjustable Clevis Hanger for stationary pipe lines, 5" size, epoxy coated, meets government procurement standards.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - 5 Inches, Epoxy Coated
$25.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - 5 Inches, Epoxy Coated
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

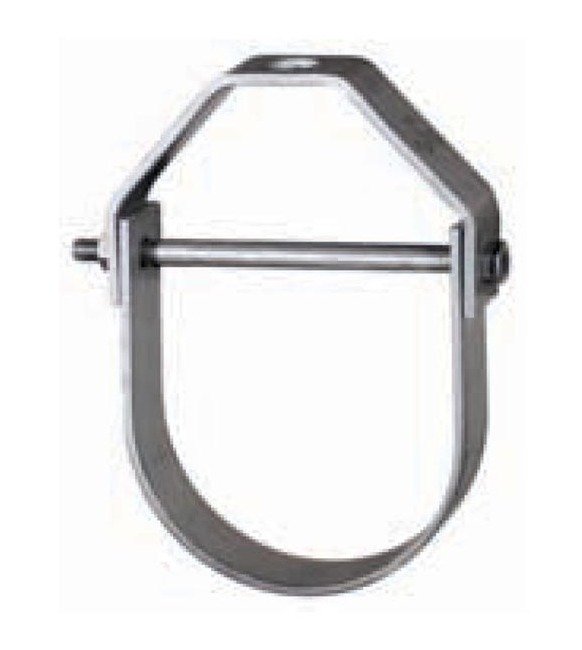

The Adjustable Clevis Hanger is designed for the suspension of stationary pipe lines, offering a size range from 1/2" to 30". Made of durable carbon steel with an epoxy coating, it ensures corrosion resistance and longevity. This hanger allows vertical adjustment from 3/8" to 5 1/8", with a maximum load capacity of 1430 lbs. Compliant with Federal Spec A-A-1192A, WW-H-171-E, and more, it meets stringent procurement standards for government and institutional buyers.

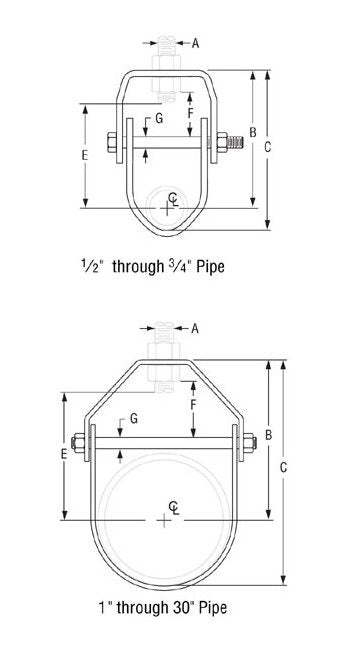

Product Specifications
Specifications Adjustment F
1 15/16 inches
Specifications Dimension B
6 9/16 inches
Specifications Dimension C
8 15/16 inches
Specifications Dimension G
3/8 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
1430 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
5 inches
Specifications Rod Size A
5/8 inches
Specifications Rod Take Out E
5 1/2 inches
Specifications Span
16 ft.
Specifications Weight
1.70 lbs
