Adjustable Clevis Hanger - Carbon Steel
Adjustable Clevis Hanger - Carbon Steel
SKU:PIP-6f28db
Durable Adjustable Clevis Hanger for stationary pipe lines, compliant with Federal and industry standards. Sizes 1/2"-30", carbon steel construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - Carbon Steel
$24.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - Carbon Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

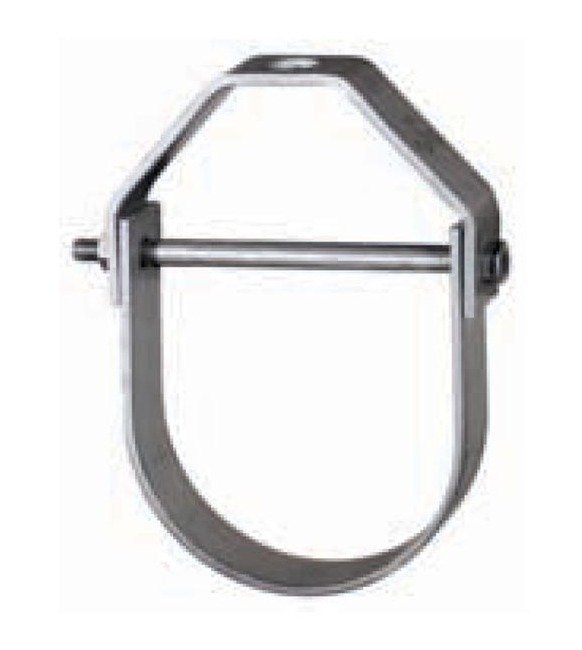

The Adjustable Clevis Hanger is a versatile solution for suspending stationary pipe lines with a size range of 1/2" through 30". Made of durable carbon steel, this hanger is available in plain, galvanized, plastic, or epoxy coatings. It complies with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards, as well as being UL, ULC Listed, and FM Approved for sizes 3/4" through 8". Designed for easy vertical adjustment without pipe removal, it can support a maximum load of 610 lbs. Tighten the hanger load nut securely for optimal performance.
Product Specifications

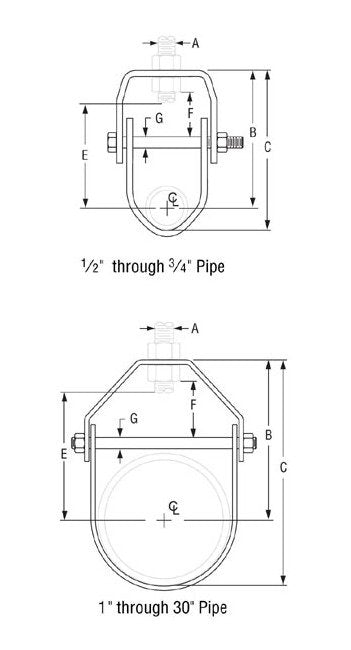

Specifications Adjustment F
5/8 inches
Specifications Dimension B
2 inches
Specifications Dimension C
2 11/16 inches
Specifications Dimension G
1/4 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
610 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
3/4 inches
Specifications Rod Size A
3/8 inches
Specifications Rod Take Out E
1 5/16 inches
Specifications Span
7 ft.
Specifications Weight
0.34 lbs
