Adjustable Clevis Hanger - Carbon Steel, Copper Plated

Name: Adjustable Clevis Hanger - Carbon Steel, Copper Plated
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-d8f630
Price: 24.99 USD
Availability: OutOfStock

SKU:PIP-d8f630

Durable carbon steel Adjustable Clevis Hanger with copper plated finish for secure suspension of copper tubing. Compliant with Federal Specification WW-H-171-E (Type 12).

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

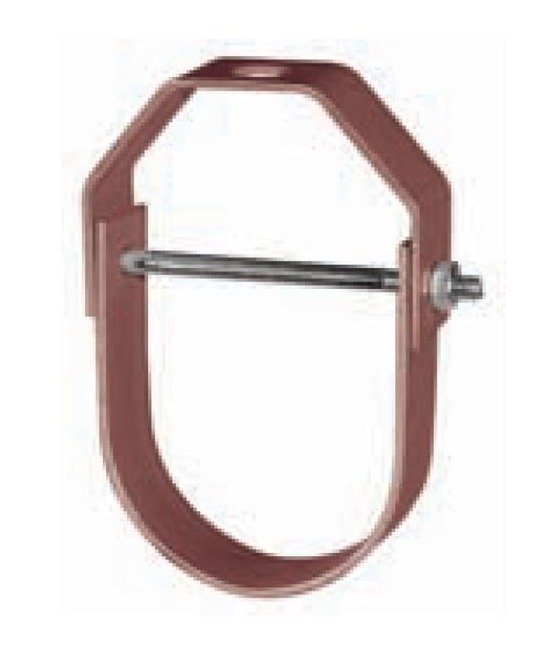

The Adjustable Clevis Hanger is designed for the suspension of non-insulated, stationary copper tubing. Made of durable carbon steel with a copper plated finish, this hanger offers easy adjustment up to 1 7/8 inches. With a maximum load capacity of 250 lbs, it provides reliable support for tubing sizes ranging from 1/2" to 4". Compliant with Federal Specification WW-H-171-E (Type 12), this hanger ensures stability and safety in various applications.

Product Specifications

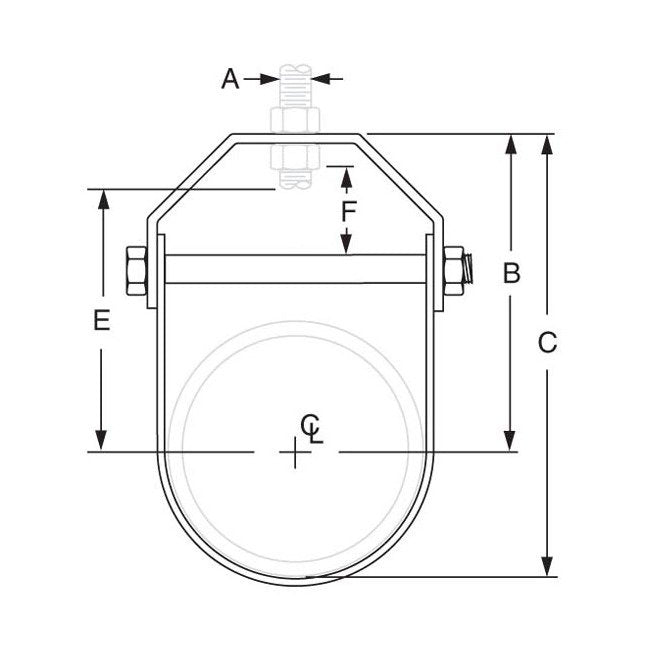

Specifications Adjustment F

5/8 inches

Specifications Dimension B

2 5/32 inches

Specifications Dimension C

2 13/16 inches

Specifications Dimension D

1 3/4 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

250 lbs

Specifications Rod Size A

3/8 inches

Specifications Rod Take Out E

1 11/16 inches

Specifications Tube Size

1 1/4 inches

Specifications Weight

0.18 lbs
