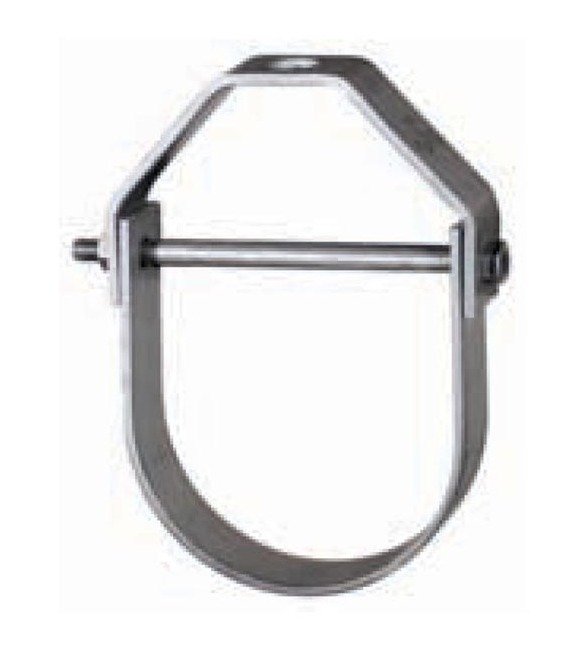

Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 1 1/4"
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 1 1/4"
SKU:PIP-5e3bc1
Durable Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, for 1 1/4" pipes. Compliant with Federal Standards.
Regular price
$28.99
Regular price
Sale price
$28.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 1 1/4"
$28.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 1 1/4"
$28.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Clevis Hanger is a versatile pipe suspension solution suitable for pipe sizes up to 1 1/4 inches and a maximum load of 730 lbs. Crafted from durable carbon steel and finished with protective epoxy coating, this hanger ensures longevity and corrosion resistance. The design features a unique yoke preventing bolt bending, offering secure support. With a range of adjustable dimensions, vertical adjustments can be made without pipe removal, enhancing installation flexibility. Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards, this hanger guarantees quality performance and reliability for various pipe suspension applications.

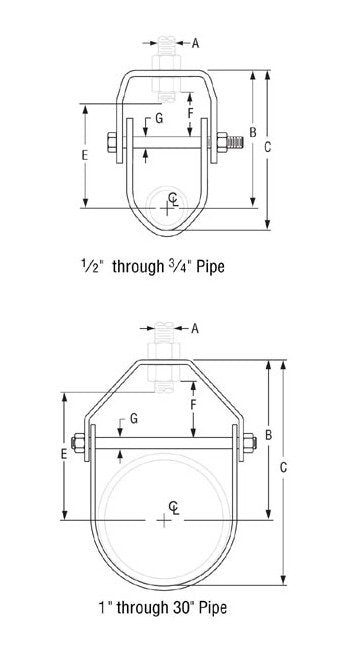

Product Specifications
Specifications Adjustment F
5/8 inches
Specifications Dimension B
2 3/8 inches
Specifications Dimension C
3 1/4 inches
Specifications Dimension G
1/4 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
730 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
1 1/4 inches
Specifications Rod Size A
3/8 inches
Specifications Rod Take Out E
1 11/16 inches
Specifications Span
7 ft.
Specifications Weight
0.40 lbs
