Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 16"
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 16"
SKU:PIP-f6d2db
Durable carbon steel Adjustable Clevis Hanger with epoxy coating, ideal for stationary pipe suspension. Sizes 1/2" to 30", max load 4600 lbs, temp resistance up to 650°F.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 16"
$49.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 16"
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

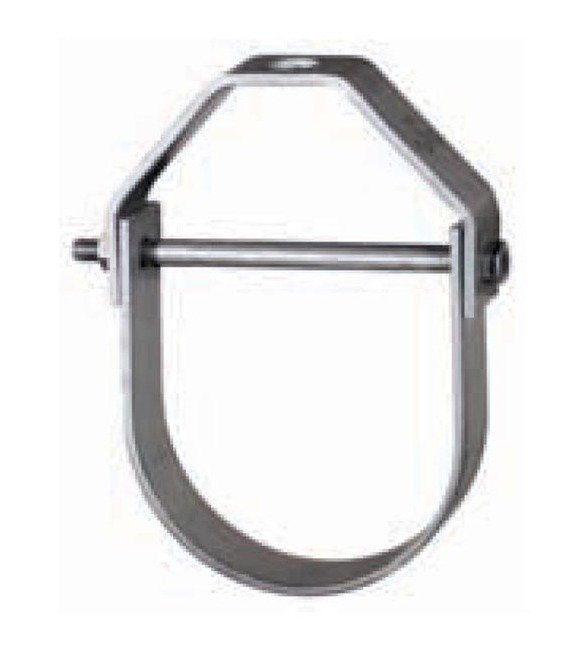

The Adjustable Clevis Hanger is a versatile solution for suspending stationary pipe lines in various settings. Made from durable carbon steel and coated with epoxy for added protection, this hanger offers a size range from 1/2" to 30". With a maximum load capacity of 4600 lbs and a maximum temperature resistance of 650°F for plain finish and 450°F for galvanized and epoxy finishes, it ensures reliable performance. Featuring a unique design with a yoke on the outside of the lower U-strap to minimize bolt bending, this hanger allows vertical adjustment without needing to remove the pipe. Ensure proper installation by tightening the hanger load nut securely above the clevis.

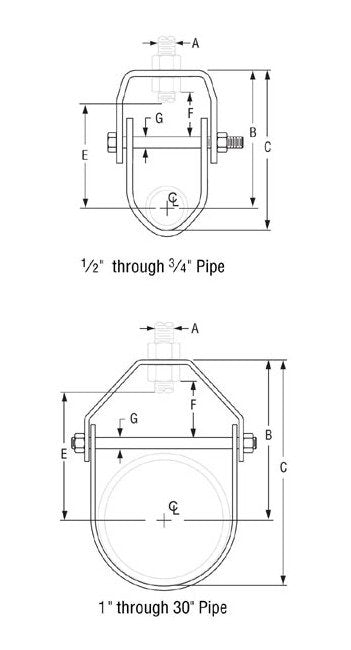

Product Specifications
Specifications Adjustment F
2 3/4 inches
Specifications Dimension B
14 inches
Specifications Dimension C
22 inches
Specifications Dimension G
1.00 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
4600 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
16 inches
Specifications Rod Size A
1 inches
Specifications Rod Take Out E
12 inches
Specifications Span
27 ft.
Specifications Weight
19.85 lbs
