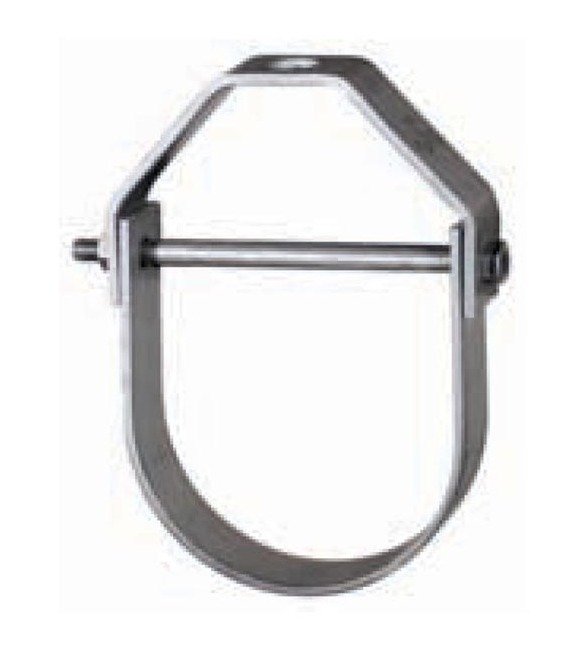

Adjustable Clevis Hanger - Carbon Steel | Epoxy Coated | 24 inches
Adjustable Clevis Hanger - Carbon Steel | Epoxy Coated | 24 inches
SKU:PIP-ae1513
Adjustable Clevis Hanger for stationary pipe lines, Carbon Steel, Epoxy Coated, max load 4800 lbs, complies with Federal and UL standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - Carbon Steel | Epoxy Coated | 24 inches
$89.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - Carbon Steel | Epoxy Coated | 24 inches
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Clevis Hanger is a versatile solution for suspending stationary pipe lines in a range of sizes from 1/2'' to 30''. Crafted from durable carbon steel with epoxy coating, this hanger ensures reliable support with a maximum load capacity of 4800 lbs. Featuring vertical adjustment up to 5 1/8'', this clevis hanger allows for easy positioning without pipe removal. Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69, as well as UL, ULC Listed, and FM Approved for sizes 3/4'' through 8''. The design prevents bending of the bolt and ensures secure installation for optimal performance.
Ready to Grow Without Cash Flow Constraints?

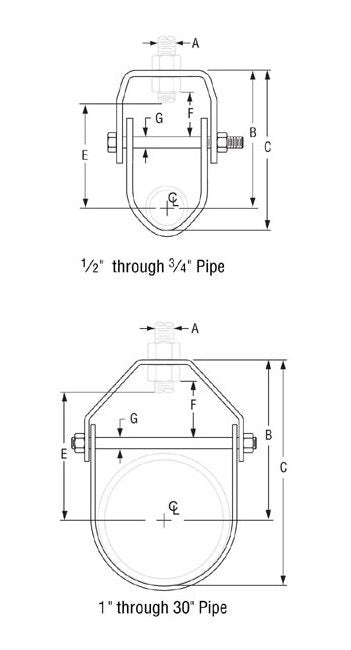

Product Specifications
Specifications Adjustment F
3 7/8 inches
Specifications Dimension B
19 13/16 inches
Specifications Dimension C
31 13/16 inches
Specifications Dimension G
1 1/4 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
4800 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
24 inches
Specifications Rod Size A
1 1/4 inches
Specifications Rod Take Out E
17 5/16 inches
Specifications Span
32 ft.
Specifications Weight
49.83 lbs
