Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 4 inches
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 4 inches
SKU:PIP-fd94da
Reliable Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 1430 lbs Capacity
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 4 inches
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, 4 inches
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

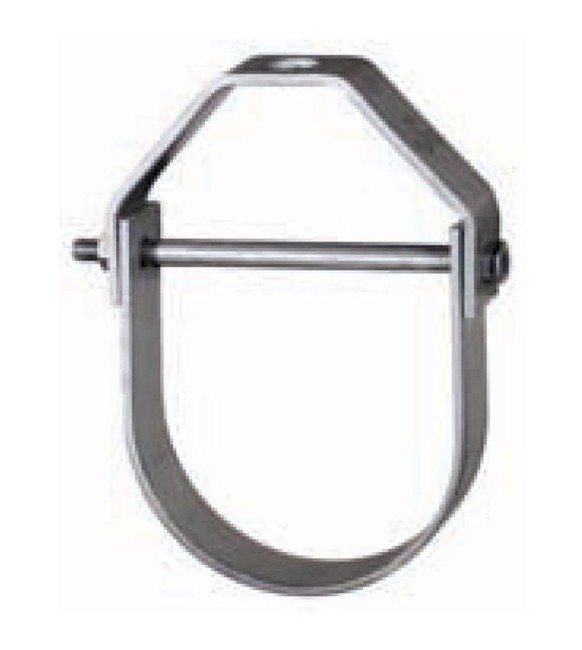

The Adjustable Clevis Hanger offers reliable support for stationary pipe lines, with a size range of 1/2" to 30". Made of durable carbon steel and available in epoxy, galvanized, plain, or plastic coating finishes, this hanger meets Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards. It can handle temperatures up to 650°F (plain) and 450°F (galvanized and epoxy), with a maximum load capacity of 1430 lbs. The yoke design prevents bolt bending, ensuring stability and longevity. Ideal for institutional and government projects requiring dependable pipe suspension solutions.
Product Specifications

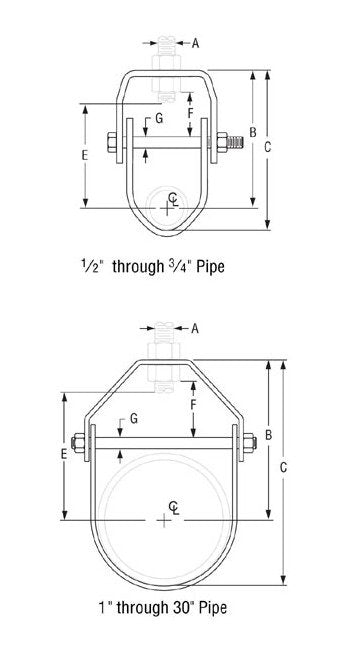

Specifications Adjustment F
1 11/16 inches
Specifications Dimension B
5 9/16 inches
Specifications Dimension C
7 13/16 inches
Specifications Dimension G
3/8 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
1430 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
4 inches
Specifications Rod Size A
5/8 inches
Specifications Rod Take Out E
4 1/2 inches
Specifications Span
14 ft.
Specifications Weight
1.51 lbs
