Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, Federal & Industry Compliant

Name: Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, Federal & Industry Compliant
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-8a11ac
Price: 89.99 USD
Availability: OutOfStock

SKU:PIP-8a11ac

Versatile and durable Adjustable Clevis Hanger, compliant with Federal & Industry standards. Carbon steel, epoxy coated for reliability.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

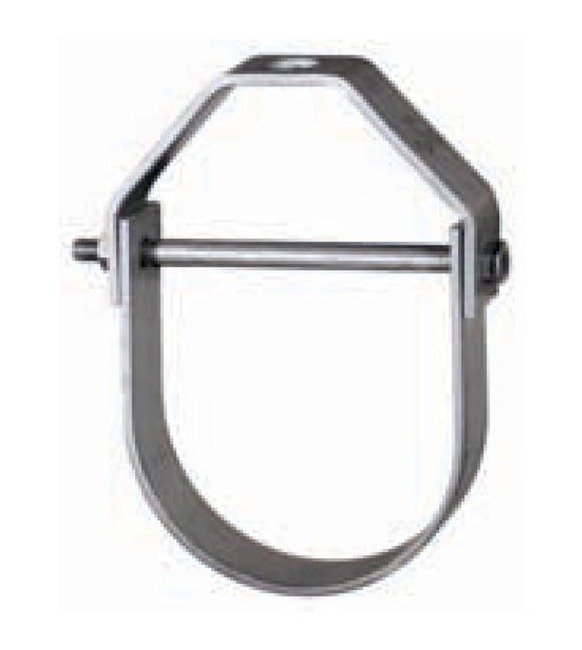

The Adjustable Clevis Hanger is a versatile solution for suspending stationary pipe lines. Crafted from durable carbon steel and finished with corrosion-resistant epoxy coating, this hanger offers exceptional strength and longevity. With a size range from 1/2" to 30" and a maximum load capacity of 4800 lbs, it is designed for reliability. Compliant with Federal Specification A-A-1192A, WW-H-171-E, MSS-SP-69, UL listing, ULC approval, FM certification, and suitable for ductile iron pipes. Its innovative design minimizes bolt bending and allows vertical adjustments without pipe disassembly, making it a preferred choice for industrial applications.

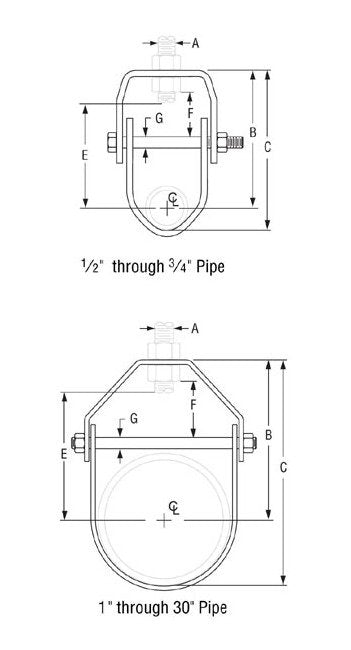

Product Specifications

Specifications Adjustment F

3 7/8 inches

Specifications Dimension B

17 9/16 inches

Specifications Dimension C

27 9/16 inches

Specifications Dimension G

1 1/4 inches

Specifications Finish

Epoxy Coated | Galvanized | Plain | Plastic Coated

Specifications Material

Carbon Steel

Specifications Maximum Load

4800 lbs

Specifications Maximum Temperature Galvanized And Epoxy

450 Â°F

Specifications Maximum Temperature Plain

650 Â°F

Specifications Pipe Size

20 inches

Specifications Rod Size A

1 1/4 inches

Specifications Rod Take Out E

15 3/16 inches

Specifications Span

30 ft.

Specifications Weight

40.33 lbs
