Adjustable Clevis Hanger - Carbon Steel Epoxy Coated | Galvanized | Plain
Adjustable Clevis Hanger - Carbon Steel Epoxy Coated | Galvanized | Plain
SKU:PIP-a45af9
Versatile Adjustable Clevis Hanger, Carbon Steel, Epoxy Coated | Galvanized | Plain Finish, Compliant with Federal Standards, Maximum Load 3800 lbs
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - Carbon Steel Epoxy Coated | Galvanized | Plain
$45.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - Carbon Steel Epoxy Coated | Galvanized | Plain
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

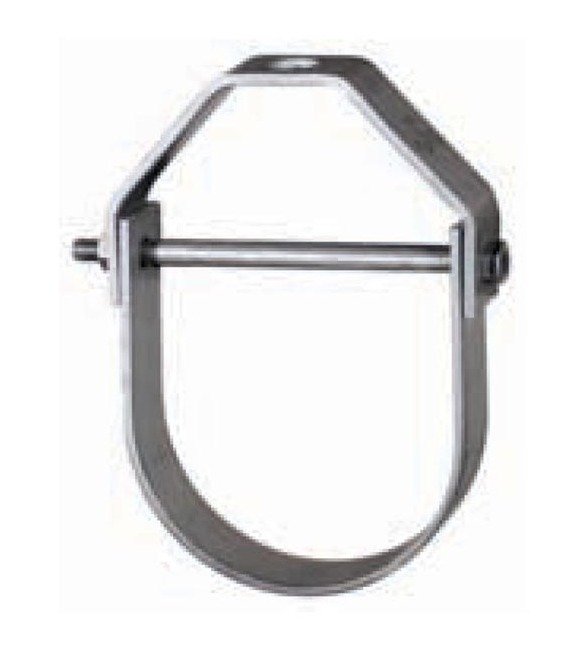

The Adjustable Clevis Hanger offers versatile suspension for stationary pipe lines. Made of durable carbon steel with epoxy coating, galvanized, or plain finish, it ensures reliable support. With a size range of 1/2" through 30" and a maximum temperature range from 450°F to 650°F, this hanger complies with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards. It is UL, ULC Listed, and FM Approved for sizes 3/4" through 8", supporting a maximum load of 3800 lbs. Easy vertical adjustment without pipe removal makes installation hassle-free.
Product Specifications

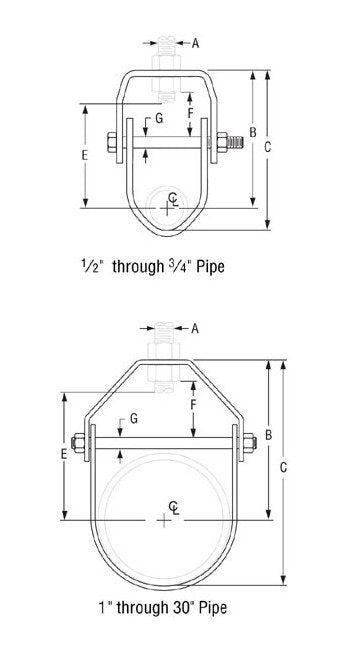

Specifications Adjustment F
2 13/16 inches
Specifications Dimension B
11 9/16 inches
Specifications Dimension C
17 15/16 inches
Specifications Dimension G
5/8 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
3800 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
12 inches
Specifications Rod Size A
7/8 inches
Specifications Rod Take Out E
10 1/8 inches
Specifications Span
23 ft.
Specifications Weight
11.20 lbs
