Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated | Galvanized | Plain

Name: Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated | Galvanized | Plain
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-afd3d2
Price: 54.99 USD
Availability: OutOfStock

SKU:PIP-afd3d2

Durable Adjustable Clevis Hanger, Carbon Steel, Epoxy Coated, Ideal for Stationary Pipe Lines

$54.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Adjustable Clevis Hanger is a versatile solution designed for the suspension of stationary pipe lines. Made from durable carbon steel and available in epoxy coated, galvanized, or plain finishes, this hanger offers exceptional performance. With a maximum temperature of 650°F for plain finish and 450°F for galvanized and epoxy coatings, it meets stringent industry standards including Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69. UL, ULC Listed, and FM Approved for sizes 3/4" to 8", ensuring reliability. The design features a yoke preventing the sliding of the lower U-strap towards the bolt center, minimizing bolt bending. Enjoy ease of vertical adjustment without pipe removal, ensuring precise installation.

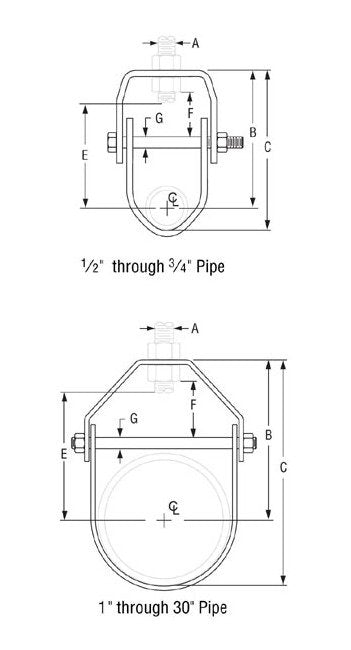

Product Specifications

Specifications Adjustment F

2 1/8 inches

Specifications Dimension B

9 7/8 inches

Specifications Dimension C

15 1/4 inches

Specifications Dimension G

5/8 inches

Specifications Finish

Epoxy Coated | Galvanized | Plain | Plastic Coated

Specifications Material

Carbon Steel

Specifications Maximum Load

3600 lbs

Specifications Maximum Temperature Galvanized And Epoxy

450 Â°F

Specifications Maximum Temperature Plain

650 Â°F

Specifications Pipe Size

10 inches

Specifications Rod Size A

7/8 inches

Specifications Rod Take Out E

8 7/16 inches

Specifications Span

22 ft.

Specifications Weight

8.60 lbs
