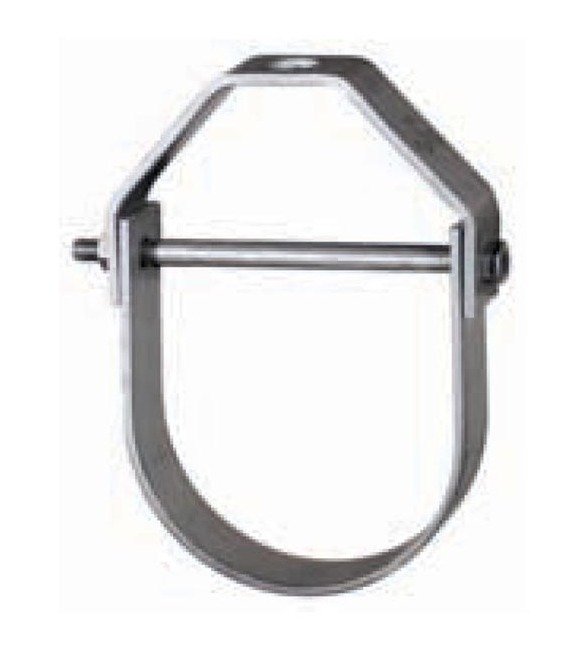

Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, Pipe Size 1"
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, Pipe Size 1"
SKU:PIP-a9d5da
Premium Adjustable Clevis Hanger - Reliable support, carbon steel, epoxy coated finish, compliant with industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, Pipe Size 1"
$24.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger - Carbon Steel, Epoxy Coated, Pipe Size 1"
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Clevis Hanger is engineered for the suspension of stationary pipe lines with a size range from 1/2" to 30". Made of durable carbon steel and available in epoxy coated finish, this hanger ensures reliable support at temperatures up to 650°F. Its innovative design features a yoke on the outside of the lower U-strap to prevent bending of the bolt. With a maximum load capacity of 730 lbs and vertical adjustment up to 5 1/8", this hanger guarantees secure and customizable pipe installations. Compliant with Federal Specification A-A-1192A (Type 1) and other industry standards, it is a top choice for both consumer and institutional buyers.

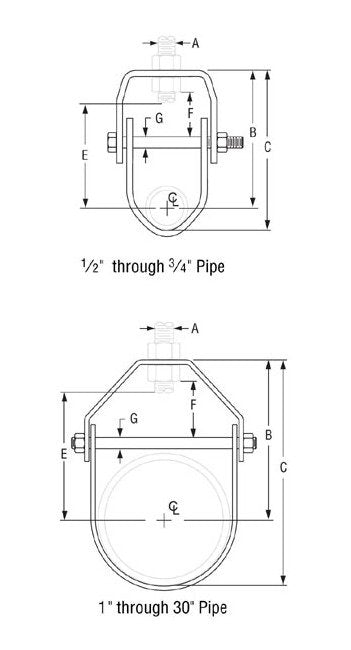

Product Specifications
Specifications Adjustment F
5/8 inches
Specifications Dimension B
2 5/16 inches
Specifications Dimension C
3 inches
Specifications Dimension G
1/4 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
730 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
1 inches
Specifications Rod Size A
3/8 inches
Specifications Rod Take Out E
1 5/8 inches
Specifications Span
7 ft.
Specifications Weight
0.35 lbs
