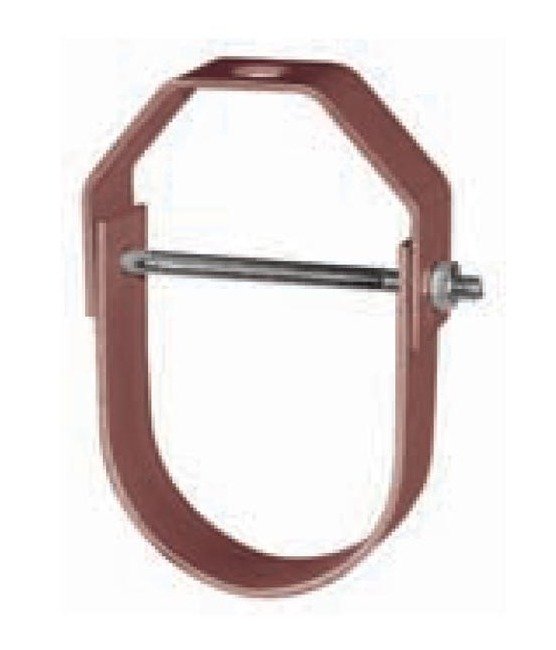

Adjustable Clevis Hanger for Copper Tubing

Name: Adjustable Clevis Hanger for Copper Tubing
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-2db829
Price: 24.99 USD
Availability: OutOfStock

SKU:PIP-2db829

Adjustable Clevis Hanger for Copper Tubing, Carbon Steel construction with Copper Plated finish. Compliant with Federal Specification WW-H-171-E (Type 12).

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Light Weight Adjustable Clevis is designed for suspending non-insulated copper tubing with ease and efficiency. Made from durable carbon steel and available in a copper-plated finish, this hanger offers adjustment flexibility of up to 1 7/8 inches, accommodating tube sizes ranging from 1/2" to 4". With a maximum load capacity of 400 lbs, this hanger provides reliable support while allowing for post-installation adjustments without additional temporary support. Compliant with Federal Specification WW-H-171-E (Type 12) and featuring easy locking mechanisms for secure positioning, this clevis hanger ensures stability and convenience in suspension applications.

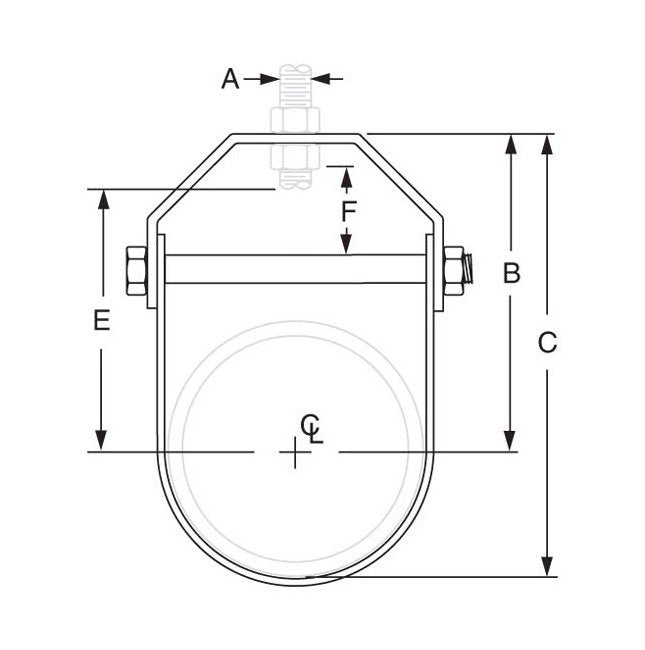

Product Specifications

Specifications Adjustment F

1 7/8 inches

Specifications Dimension B

4 31/32 inches

Specifications Dimension C

6 31/32 inches

Specifications Dimension D

3 1/4 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Rod Take Out E

4 3/8 inches

Specifications Tube Size

4 inches

Specifications Weight

0.60 lbs
