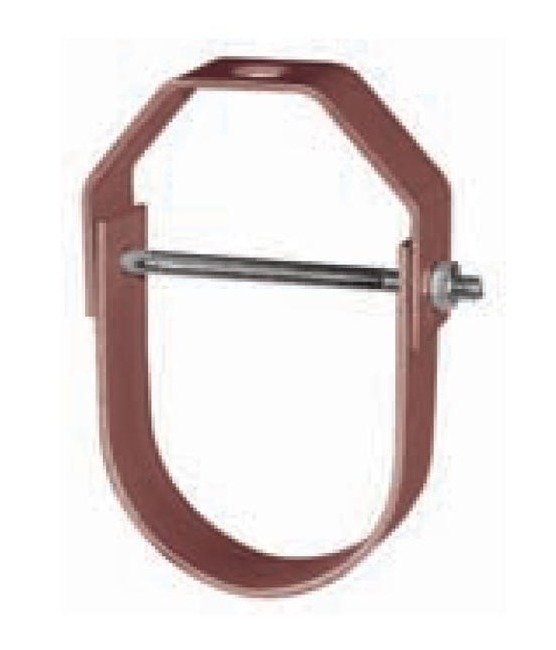

Adjustable Clevis Hanger for Copper Tubing

Name: Adjustable Clevis Hanger for Copper Tubing
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-aa7209
Price: 24.99 USD
Availability: OutOfStock

SKU:PIP-aa7209

Securely suspend non-insulated copper tubes with our adjustable clevis hanger. Compliant with Federal Spec WW-H-171-E (Type 12).

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Light Weight Adjustable Clevis Hanger is designed for suspending non-insulated copper tubes with efficiency and ease. Made of high-quality carbon steel and available in Copper Plated or Yellow Dichromate finishes, this hanger offers adjustment capabilities up to 1 7/8 inches, accommodating tube sizes from 1/2" to 4". With a maximum load capacity of 250 lbs, it ensures secure support for stationary applications. Compliant with Federal Specification WW-H-171-E (Type 12), this clevis hanger allows for post-installation adjustments without the need for temporary support, simplifying installation processes. Specify tube size, figure number, and finish for convenient ordering.

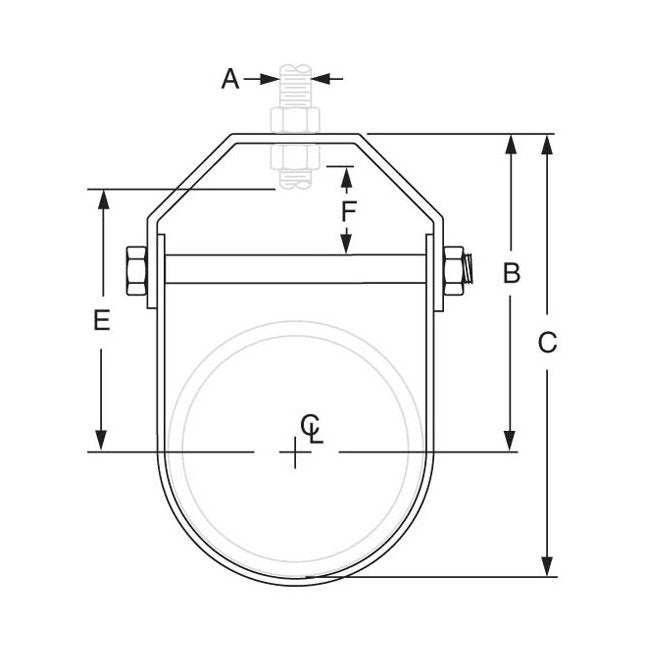

Product Specifications

Specifications Adjustment F

1/2 inches

Specifications Dimension B

1 7/8 inches

Specifications Dimension C

2 13/32 inches

Specifications Dimension D

1 5/8 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

250 lbs

Specifications Rod Size A

3/8 inches

Specifications Rod Take Out E

1 7/16 inches

Specifications Tube Size

1 inches

Specifications Weight

0.17 lbs
