Adjustable Clevis Hanger for Copper Tubing

Adjustable Clevis Hanger for Copper Tubing

SKU:PIP-2ee3d5

Adjustable Clevis Hanger for Copper Tubing - Durable carbon steel construction with copper-plated finish. Complies with Federal Specification WW-H-171-E (Type 12).

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

Adjustable Clevis Hanger for Copper Tubing

Adjustable Clevis Hanger for Copper Tubing

$12.99

Quantity: 1

Claim Your Seller Account

Adjustable Clevis Hanger for Copper Tubing

Adjustable Clevis Hanger for Copper Tubing

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

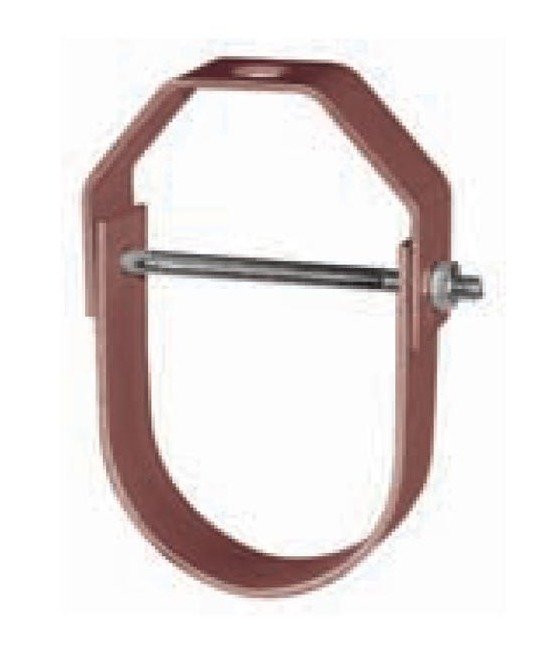

The Adjustable Clevis Hanger for Copper Tubing is a versatile solution for suspending non-insulated, stationary copper tubes. Crafted from durable carbon steel with a copper-plated finish, this clevis offers adjustment up to 1 7/8 inches, accommodating tube sizes ranging from 1/2 to 4 inches. With a maximum load capacity of 150 lbs, it provides reliable support without compromising on strength or durability. This hanger complies with Federal Specification WW-H-171-E (Type 12) and can be easily adjusted before or after tubing installation. The innovative design allows for secure locking into position, ensuring stability and ease of use for various applications.

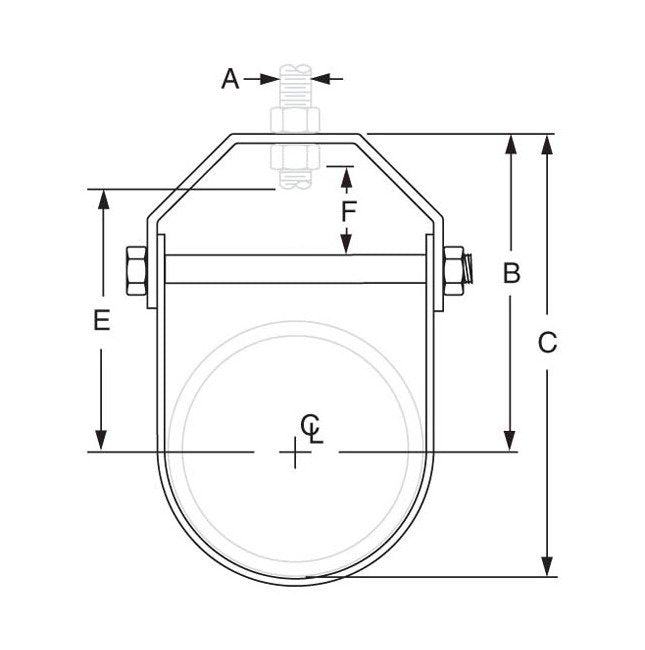

Product Specifications

Specifications Adjustment F
5/16 inches
Specifications Dimension B
1 1/2 inches
Specifications Dimension C
1 27/32 inches
Specifications Dimension D
1 7/16 inches
Specifications Finish
Copper Plated | Yellow Dichromate
Specifications Material
Carbon Steel
Specifications Maximum Load
150 lbs
Specifications Rod Size A
3/8 inches
Specifications Rod Take Out E
1 1/16 inches
Specifications Tube Size
1/2 inches
Specifications Weight
0.09 lbs
