Adjustable Clevis Hanger for Copper Tubing

Adjustable Clevis Hanger for Copper Tubing

SKU:PIP-78d81c

Durable carbon steel clevis hanger for non-insulated copper tubes, adjustable up to 1 7/8 inches. Compliant with Federal Specification WW-H-171-E.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Adjustable Clevis Hanger for Copper Tubing

Adjustable Clevis Hanger for Copper Tubing

$24.99

Quantity: 1

Claim Your Seller Account

Adjustable Clevis Hanger for Copper Tubing

Adjustable Clevis Hanger for Copper Tubing

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

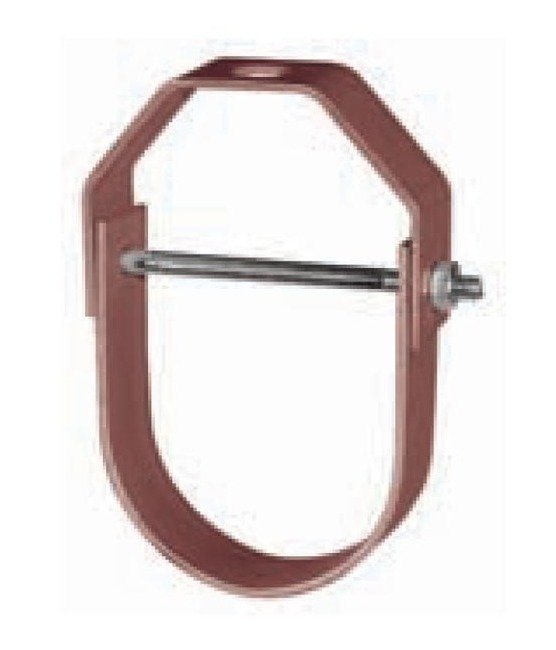

The Light Weight Adjustable Clevis Hanger is designed for suspending non-insulated copper tubes with ease and precision. Made of durable carbon steel with a copper plated finish, this hanger offers adjustable features allowing for up to 1 7/8 inches of adjustment. With a maximum load capacity of 350 lbs, it provides reliable support for tubes ranging from 1/2 to 4 inches. Compliant with Federal Specification WW-H-171-E (Type 12), this hanger ensures quality and reliability for institutional and government installations.

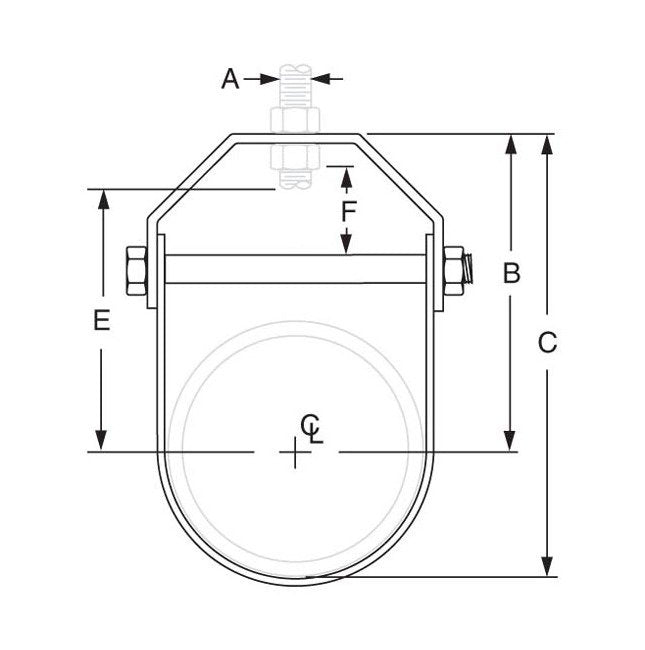

Product Specifications

Specifications Adjustment F
1 5/8 inches
Specifications Dimension B
4 15/32 inches
Specifications Dimension C
6 7/32 inches
Specifications Dimension D
3 inches
Specifications Finish
Copper Plated | Yellow Dichromate
Specifications Material
Carbon Steel
Specifications Maximum Load
350 lbs
Specifications Rod Size A
3/8 inches
Specifications Rod Take Out E
3 7/8 inches
Specifications Tube Size
3 inches
Specifications Weight
0.55 lbs
