Adjustable Clevis Hanger for Copper Tubing

Name: Adjustable Clevis Hanger for Copper Tubing
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-df9beb
Price: 29.99 USD
Availability: OutOfStock

SKU:PIP-df9beb

Adjustable Clevis Hanger for Copper Tubing - Durable carbon steel construction with copper-plated finish. Compliant with Federal Specification WW-H-171-E (Type 12).

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

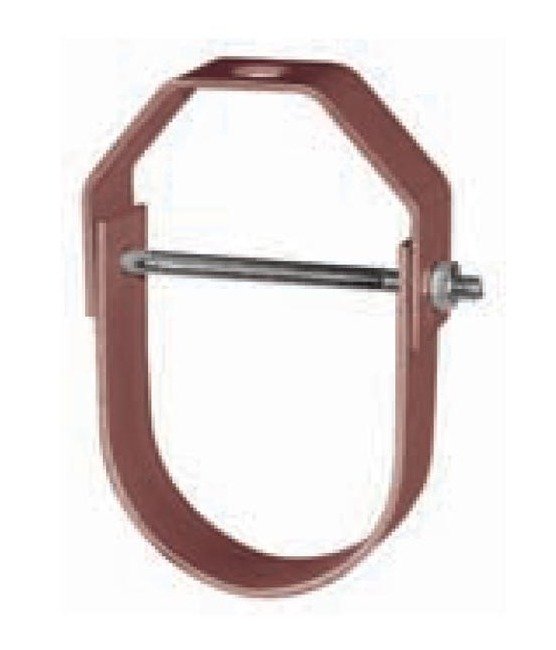

The Light Weight Adjustable Clevis for Copper Tubing offers a versatile solution for suspending non-insulated copper tubes. Made of durable carbon steel with a copper-plated finish, this clevis hanger is designed for tube sizes ranging from 1/2" to 4". With features allowing for easy adjustment up to 1 7/8", locking capability, and a maximum load capacity of 250 lbs, it provides secure and customizable support. Compliant with Federal Specification WW-H-171-E (Type 12), this hanger ensures adherence to industry standards for reliable performance.

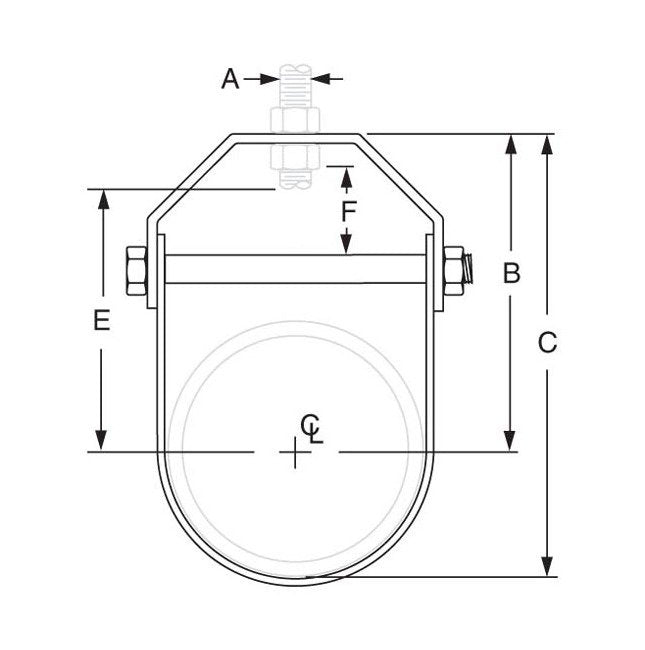

Product Specifications

Specifications Adjustment F

13/16 inches

Specifications Dimension B

2 17/32 inches

Specifications Dimension C

3 3/8 inches

Specifications Dimension D

1 15/16 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

250 lbs

Specifications Rod Size A

3/8 inches

Specifications Rod Take Out E

2 1/16 inches

Specifications Tube Size

1 1/2 inches

Specifications Weight

0.21 lbs
