Adjustable Clevis Hanger for Pipe and Tube Suspension
Adjustable Clevis Hanger for Pipe and Tube Suspension
SKU:PIP-f87027
Adjustable Clevis Hanger for stationary pipe suspension, carbon steel construction, versatile finish options, supports up to 730 lbs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger for Pipe and Tube Suspension
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger for Pipe and Tube Suspension
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

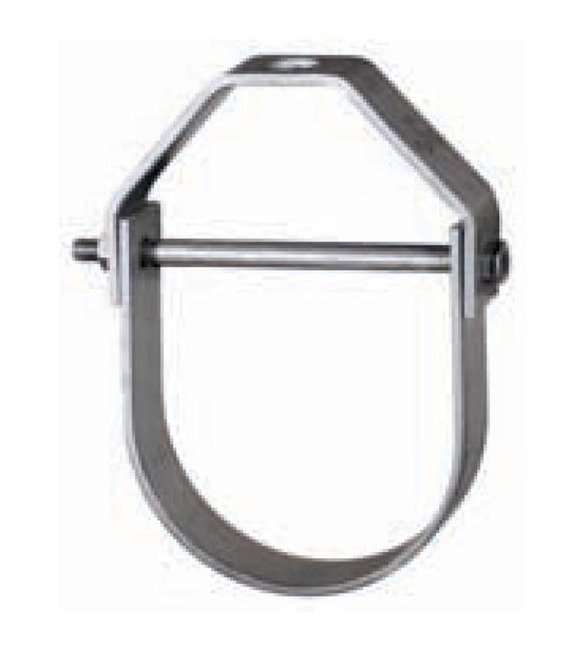

The Adjustable Clevis Hanger is designed for the suspension of stationary pipe lines with a size range from 1/2" to 30". Made of durable carbon steel and available in plain, galvanized, or epoxy coated finishes, this hanger is suitable for various environments. With approvals meeting Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards, as well as UL, ULC, and FM listings, it ensures quality and reliability. Featuring a unique design to minimize bolt bending and offering vertical adjustment without pipe removal, it provides ease of installation and maintenance. The hanger can support up to 730 lbs with a maximum temperature range of 650°F for plain finish and 450°F for galvanized and epoxy finishes.

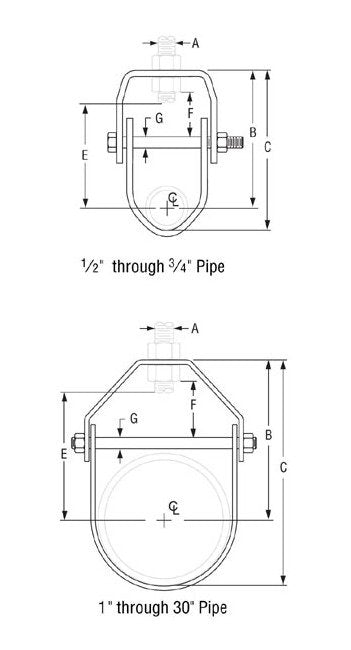

Product Specifications
Specifications Adjustment F
1 1/8 inches
Specifications Dimension B
3 5/16 inches
Specifications Dimension C
4 1/2 inches
Specifications Dimension G
1/4 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
730 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
2 inches
Specifications Rod Size A
3/8 inches
Specifications Rod Take Out E
2 5/8 inches
Specifications Span
10 ft.
Specifications Weight
0.50 lbs
