Adjustable Clevis Hanger for Pipe and Tube Suspension
Adjustable Clevis Hanger for Pipe and Tube Suspension
SKU:PIP-ad7420
Securely suspend pipe lines with our Adjustable Clevis Hanger. Compliant with Federal standards, with up to 1350 lbs load capacity and 650°F temperature resistance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger for Pipe and Tube Suspension
$24.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger for Pipe and Tube Suspension
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

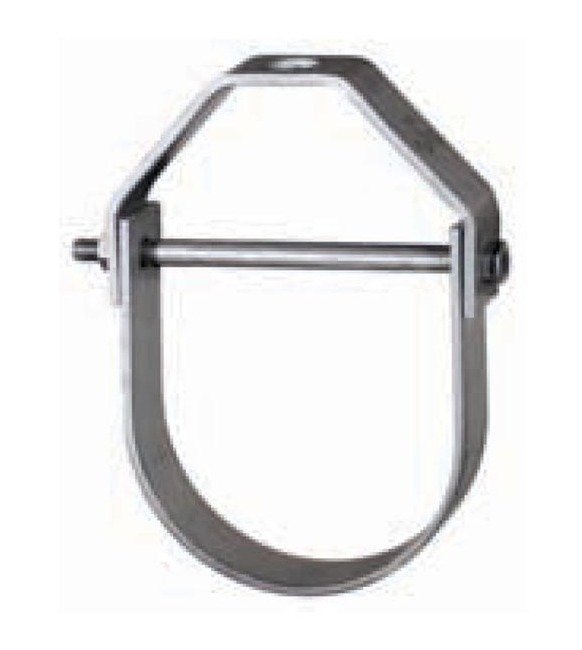

The Adjustable Clevis Hanger is designed for the secure suspension of stationary pipe lines. Made of carbon steel with epoxy coating, galvanized, or plain finish options, it can withstand temperatures up to 650°F. This hanger complies with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards. With vertical adjustment capabilities and a maximum load of 1350 lbs, it offers reliable support and easy installation, ensuring optimal performance in diverse institutional applications.

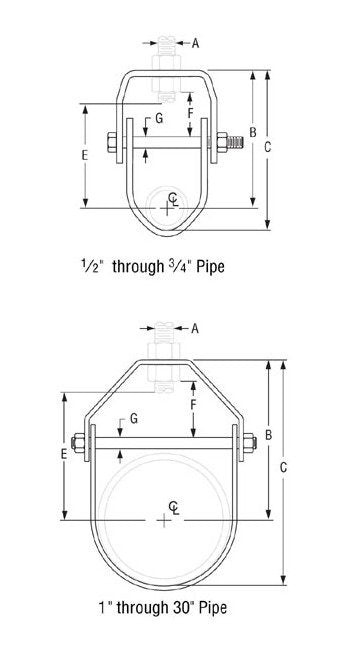

Product Specifications
Specifications Adjustment F
1 5/8 inches
Specifications Dimension B
4 3/4 inches
Specifications Dimension C
6 1/2 inches
Specifications Dimension G
3/8 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
1350 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
3 inches
Specifications Rod Size A
1/2 inches
Specifications Rod Take Out E
4 1/16 inches
Specifications Span
12 ft.
Specifications Weight
0.85 lbs
