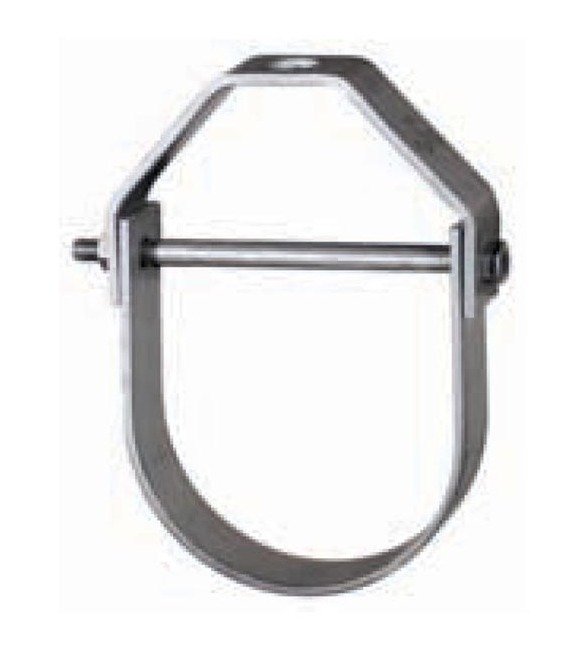

Adjustable Clevis Hanger for Pipe and Tube Suspension
Adjustable Clevis Hanger for Pipe and Tube Suspension
SKU:PIP-8f3f60
Durable Adjustable Clevis Hanger for versatile pipe line suspension, compliant with federal standards. Reliable support with customizable adjustments.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger for Pipe and Tube Suspension
$25.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger for Pipe and Tube Suspension
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Clevis Hanger offers versatile support for stationary pipe lines. Made of durable carbon steel with finish options of plain, galvanized, or epoxy coating, this hanger is designed for reliability. With a maximum temperature resistance of 650°F for Plain and 450°F for Galvanized and Epoxy finishes, it complies with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards. The design features a yoke to prevent bending of the bolt, ensuring stability and strength. Vertical adjustment up to 5 1/8 inches is possible without pipe removal, allowing for customized installation. Available in various sizes from 1/2" to 30", this Adjustable Clevis Hanger is a dependable choice for efficient pipe suspension.

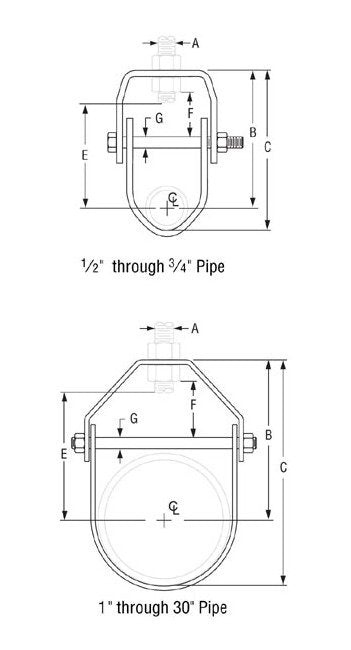

Product Specifications
Specifications Adjustment F
7/8 inches
Specifications Dimension B
2 13/16 inches
Specifications Dimension C
3 13/16 inches
Specifications Dimension G
1/4 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
730 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
1 1/2 inches
Specifications Rod Size A
3/8 inches
Specifications Rod Take Out E
2 1/8 inches
Specifications Span
9 ft.
Specifications Weight
0.45 lbs
