Adjustable Clevis Hanger for Pipe Suspension
Adjustable Clevis Hanger for Pipe Suspension
SKU:PIP-368334
Securely suspend stationary pipe lines with our Adjustable Clevis Hanger. Durable carbon steel construction with plain, galvanized, or epoxy finishes. Compliant with major industry standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger for Pipe Suspension
$39.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger for Pipe Suspension
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

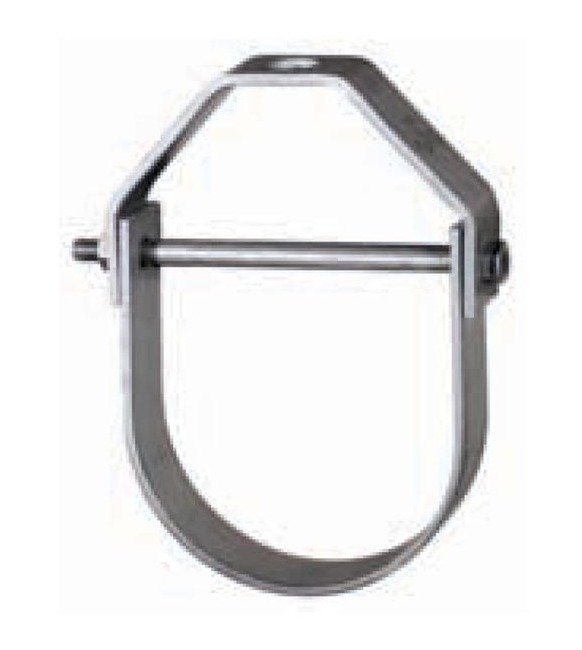

The Adjustable Clevis Hanger is a versatile solution for securely suspending stationary pipe lines. Constructed from carbon steel with options for plain, galvanized, or epoxy coatings, this hanger is designed for durability and performance. With a maximum load capacity of 1940 lbs and a temperature range of up to 650°F for plain finish and 450°F for galvanized and epoxy finishes, it ensures reliable support in various environments. Featuring vertical adjustment capabilities and a unique yoke design to minimize bolt bending, this hanger offers ease of installation and maintenance. Compliant with Federal Specification A-A-1192A, WW-H-171-E, MSS-SP-69, UL, ULC Listed, FM Approved (Sizes 3/4 inch through 8 inch), this hanger meets stringent industry standards.

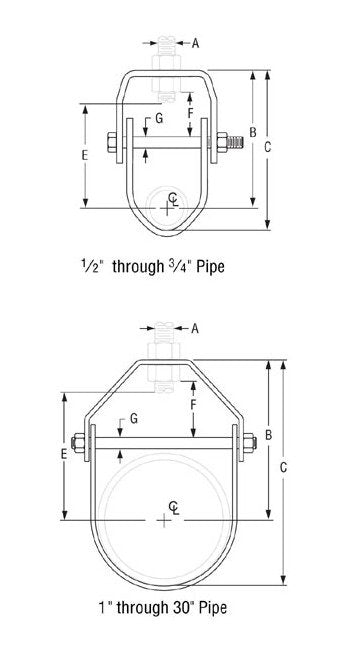

Product Specifications
Specifications Adjustment F
1 11/16 inches
Specifications Dimension B
6 15/16 inches
Specifications Dimension C
10 1/4 inches
Specifications Dimension G
1/2 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
1940 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
6 inches
Specifications Rod Size A
3/4 inches
Specifications Rod Take Out E
5 3/4 inches
Specifications Span
17 ft.
Specifications Weight
3.10 lbs
