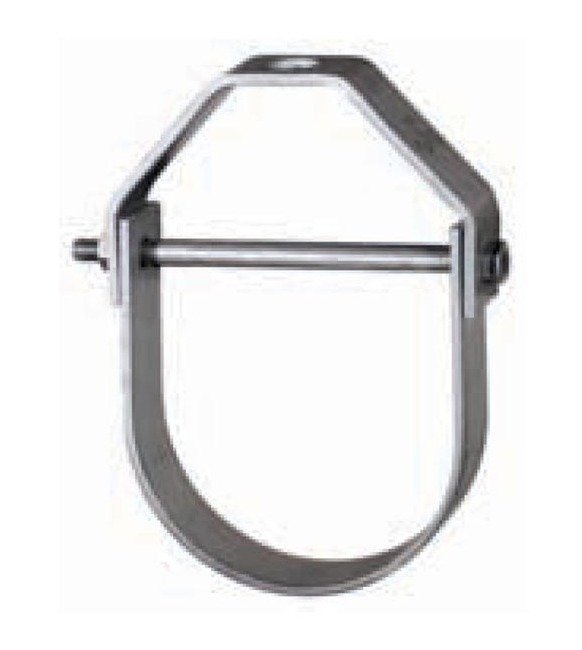

Adjustable Clevis Hanger Pipe Support
Adjustable Clevis Hanger Pipe Support
SKU:PIP-734dd9
Versatile Adjustable Clevis Hanger for stationary pipe lines, with durable carbon steel construction and compliant with Federal Specifications & industry standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Adjustable Clevis Hanger Pipe Support
$45.99
Quantity: 1
Claim Your Seller Account
Adjustable Clevis Hanger Pipe Support
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Clevis Hanger Pipe Support is a versatile solution for suspending stationary pipe lines. Constructed from durable carbon steel with options for plain, galvanized, or epoxy coatings, this hanger is designed to withstand temperatures up to 650°F. Featuring a unique yoke design for minimal bolt bending, it allows vertical adjustments without pipe removal. With a maximum load capacity of 2000 lbs and adjustable dimensions, this hanger provides secure support for pipes ranging from 1/2" to 30". Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69, as well as UL, ULC, and FM approvals, it meets stringent industry standards for quality and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

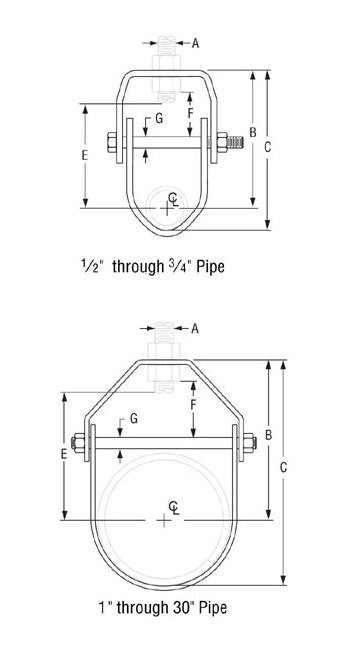

Specifications Adjustment F
2 inches
Specifications Dimension B
8 3/8 inches
Specifications Dimension C
12 11/16 inches
Specifications Dimension G
1/2 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
2000 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
8 inches
Specifications Rod Size A
3/4 inches
Specifications Rod Take Out E
7 3/16 inches
Specifications Span
19 ft.
Specifications Weight
4.75 lbs
