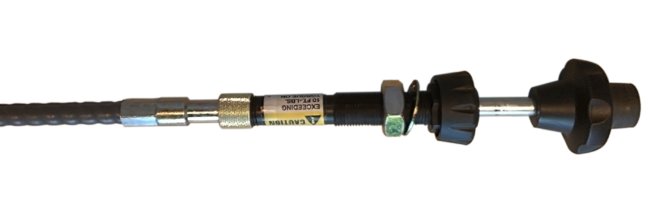

Adjustable Control Head Cable Assembly

Name: Adjustable Control Head Cable Assembly
Brand: Lexco Cable Manufacturing
SKU: PUS-08dc3f
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-08dc3f

Precision-engineered adjustable control cable for smooth performance in demanding applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Adjustable Control Head Cable Assembly is meticulously designed for precision control applications, featuring a factory-assembled structure with a trim-to-length design and stainless steel solid wire innermember. With a versatile range of up to 3" travel, a minimum bend radius of 5", and a robust 20 lb pull load rating, this cable ensures reliable performance in demanding settings. The various output end fittings and seal options cater to different requirements, while the Micro Adjust functionality enhances flexibility and ease of use.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Light Duty

Specifications Conduit Type

Low Friction

Specifications Control Head Type

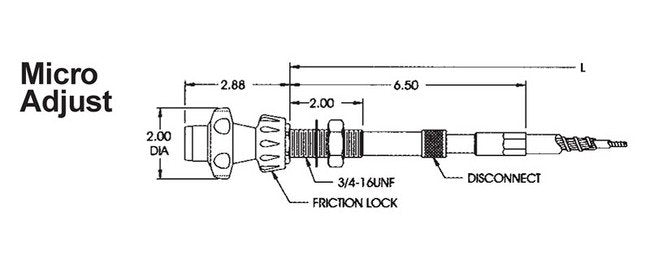

Micro Adjust

Specifications Micro Adjust Only Cable Options

D - Disconnect Feature | F - Friction Lock Accessory

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Carbon Steel Fittings

CAGE

0T9L4

NAICS

332510

PSC

4030
