Adjustable Copper Plated Clevis Hanger

Adjustable Copper Plated Clevis Hanger

SKU:PIP-32f29c

Durable adjustable clevis hanger for copper tubing, complies with Federal Specification WW-H-171-E (Type 12).

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Adjustable Copper Plated Clevis Hanger

Adjustable Copper Plated Clevis Hanger

$29.99

Quantity: 1

Claim Your Seller Account

Adjustable Copper Plated Clevis Hanger

Adjustable Copper Plated Clevis Hanger

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

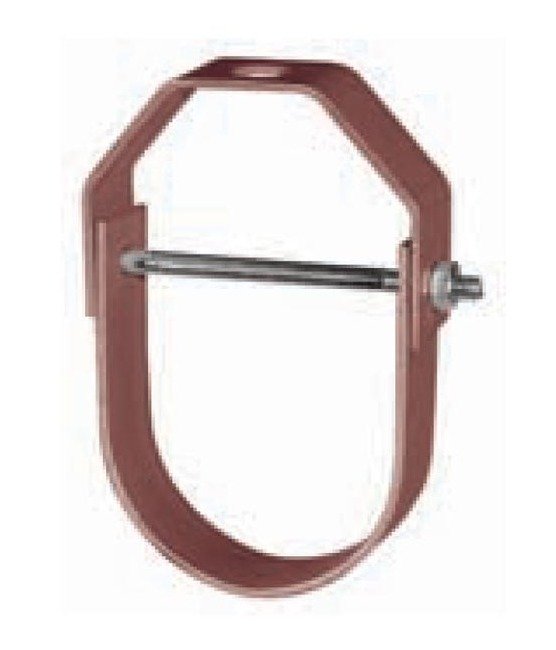

The Adjustable Copper Plated Clevis Hanger is designed for suspending non-insulated stationary copper tubes with ease. Made of durable carbon steel and featuring a copper plated finish, this hanger offers adjustment of up to 1 7/8 inches. With dimensions suitable for 3/4-inch tubes and a maximum load capacity of 150 lbs, it is a reliable choice for your piping needs. Compliant with Federal Specification WW-H-171-E (Type 12), this hanger ensures quality performance and easy installation without the need for temporary support, meeting the standards of institutional and government procurement.

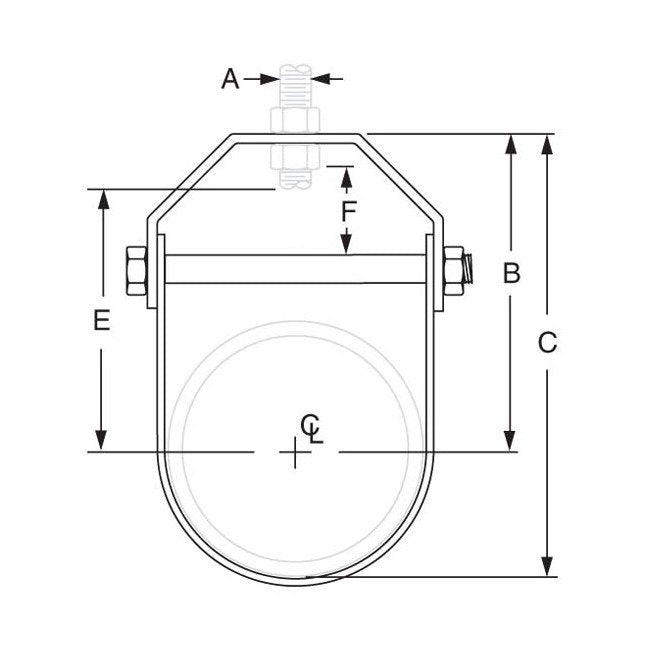

Product Specifications

Specifications Adjustment F
7/16 inches
Specifications Dimension B
1 11/16 inches
Specifications Dimension C
2 3/32 inches
Specifications Dimension D
1 9/16 inches
Specifications Finish
Copper Plated | Yellow Dichromate
Specifications Material
Carbon Steel
Specifications Maximum Load
150 lbs
Specifications Rod Size A
3/8 inches
Specifications Rod Take Out E
1 1/4 inches
Specifications Tube Size
3/4 inches
Specifications Weight
0.10 lbs
