Adjustable Copper Tubing Hanger (Plastic Coated)

Name: Adjustable Copper Tubing Hanger (Plastic Coated)
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-2ed32a
Price: 12.99 USD
Availability: OutOfStock

SKU:PIP-2ed32a

Durable Adjustable Copper Tubing Hanger with galvanic action protection & 650 lbs load capacity. Ideal for securing copper tubes.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

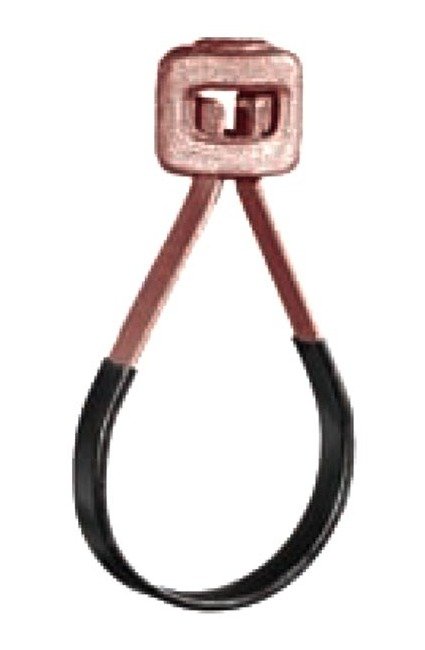

The Adjustable Copper Tubing Hanger features a durable design with a carbon steel ring and malleable iron adjusting nut. This hanger is copper plated and plastic coated to prevent galvanic action, ensuring long-term stability and corrosion resistance. With a wide size range from 1/2" to 4" and a maximum load capacity of 650 lbs, this hanger provides secure support for copper tubing in various applications. Specify nominal tube size and figure number for easy ordering.

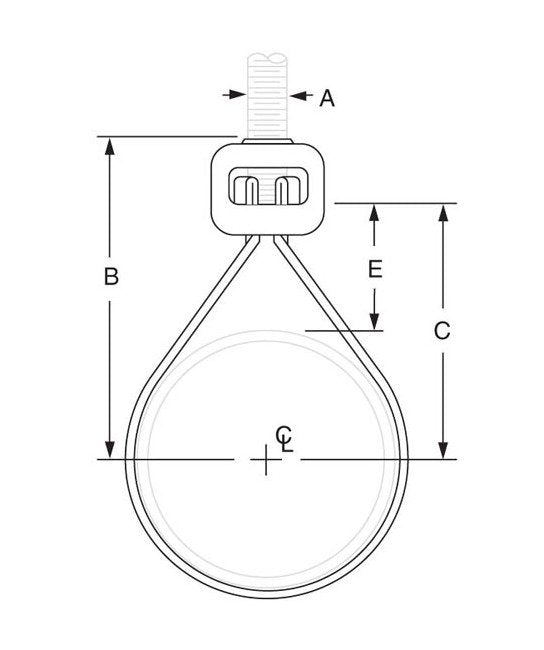

Product Specifications

Specifications Adjustment E

1 11/16 inches

Specifications Dimension B

3 7/8 inches

Specifications Dimension C

3 inches

Specifications Finish

Copper plated with the band plastic coated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

650 lbs

Specifications Rod Size A

1/2 inches

Specifications Tube Size

2 1/2 inches

Specifications Weight

0.33 lbs
