Adjustable Copper Tubing Hanger Ring

Name: Adjustable Copper Tubing Hanger Ring
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-b8fa14
Price: 12.99 USD
Availability: OutOfStock

SKU:PIP-b8fa14

Durable Adjustable Copper Tubing Hanger Ring for suspending non-insulated stationary copper tubes. Complies with Federal Specs. Supports up to 650 lbs.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

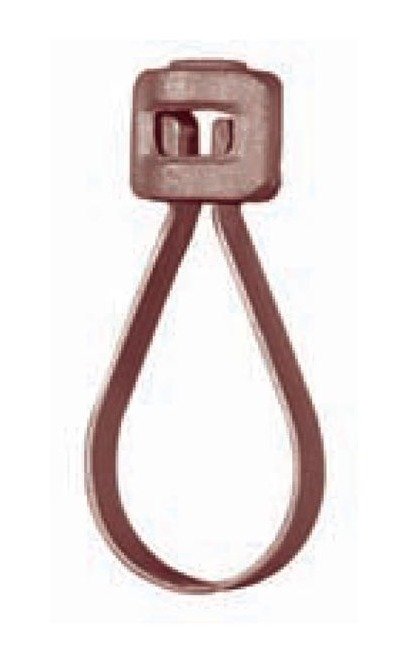

The Adjustable Copper Tubing Hanger Ring is the ideal solution for suspending non-insulated stationary copper tubes. Crafted with a carbon steel ring and malleable iron adjusting nut, copper plated for durability. This versatile hanger ring complies with Federal Spec A-A-1192A, WW-H-171-E, and MSS-SP-69 standards. Featuring a large sight hole for easy thread engagement, it offers greater vertical adjustability and can support up to 650 lbs. Easily adjustable for 1/2" to 4" tubing, making installation a breeze.

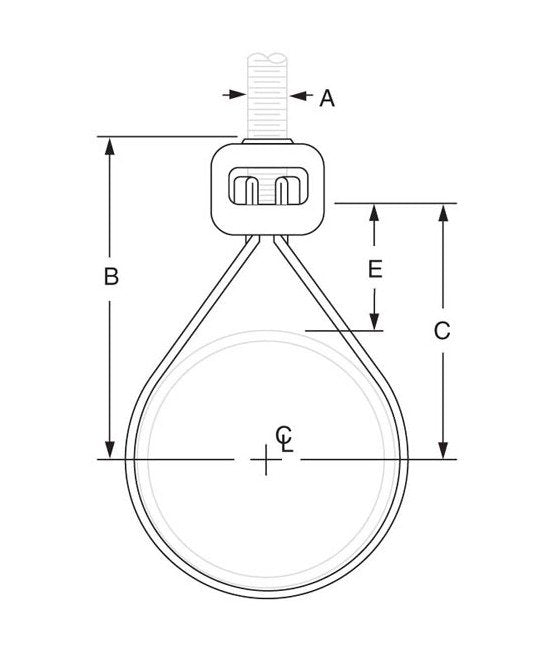

Product Specifications

Specifications Adjustment E

2 1/8 inches

Specifications Dimension B

5 1/16 inches

Specifications Dimension C

4 3/16 inches

Specifications Finish

Copper Plated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

650 lbs

Specifications Rod Size A

1/2 inches

Specifications Tube Size

4 inches

Specifications Weight

0.41 lbs

Adjustable Copper Tubing Hanger Ring
