Adjustable Copper Tubing Hanger Ring

Name: Adjustable Copper Tubing Hanger Ring
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-bcf996
Price: 25.99 USD
Availability: OutOfStock

SKU:PIP-bcf996

Versatile copper tubing hanger ring with adjustable design, compliant with Federal specifications. Ideal for stationary copper tubes.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

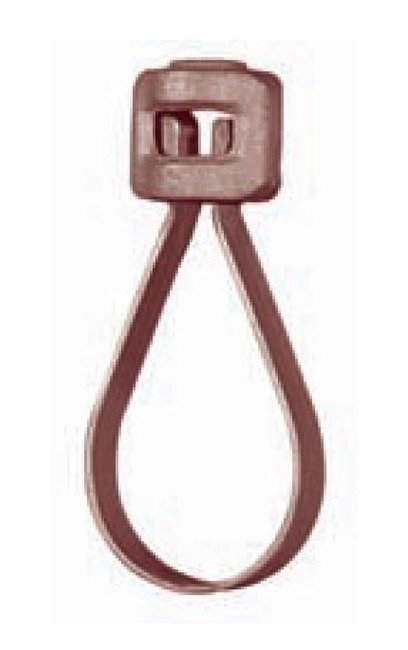

The Adjustable Copper Tubing Hanger Ring is a versatile solution for suspending non-insulated stationary copper tubes. Crafted from carbon steel with a malleable iron adjusting nut and copper-plated finish, this tubing ring offers a size range from 1/2" to 4". With a large sight hole for secure thread engagement, it ensures precise installations with a maximum load capacity of 400 lbs. This product complies with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards.

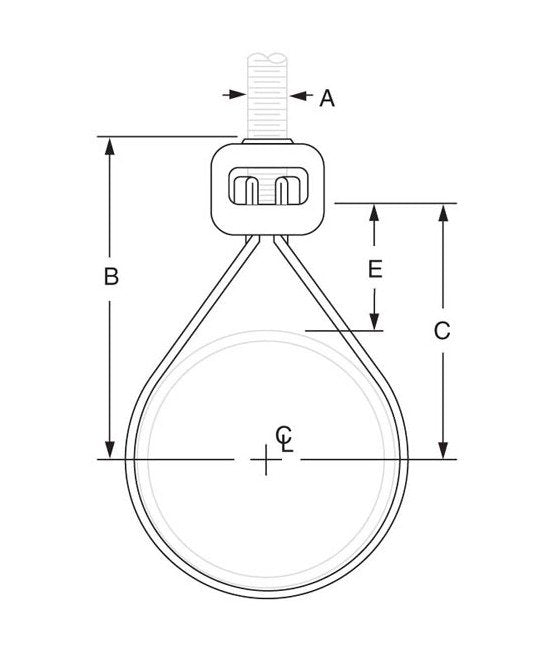

Product Specifications

Specifications Adjustment E

1 1/2 inches

Specifications Dimension B

3 5/16 inches

Specifications Dimension C

2 9/16 inches

Specifications Finish

Copper Plated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

2 inches

Specifications Weight

0.17 lbs

Adjustable Copper Tubing Hanger Ring
