Adjustable Copper Tubing Hanger Ring
Adjustable Copper Tubing Hanger Ring
SKU:PIP-7af7b3
Securely suspend 1-inch copper tubing with precision using our Adjustable Copper Tubing Hanger Ring. Compliant with federal specifications, offering durability and ease of installation.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Adjustable Copper Tubing Hanger Ring
$14.99
Quantity: 1
Claim Your Seller Account
Adjustable Copper Tubing Hanger Ring
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

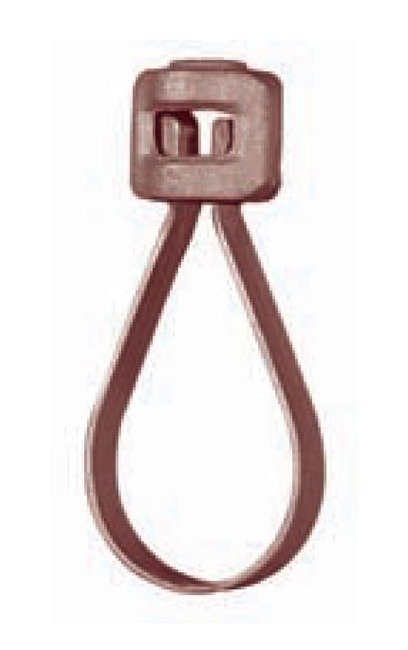

The Adjustable Copper Tubing Hanger Ring is designed for suspending non-insulated copper tubes with precision and ease. Crafted from carbon steel and malleable iron with a copper-plated finish, this hanger ring offers maximum strength and durability. Its large sight hole ensures secure thread engagement, and the nut can be attached to the rod before installation. With greater vertical adjustability and a maximum load capacity of 400 lbs, this competitively priced hanger ring is sized specifically for 1-inch copper tubing. Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69, this product meets stringent industry standards for quality and performance.

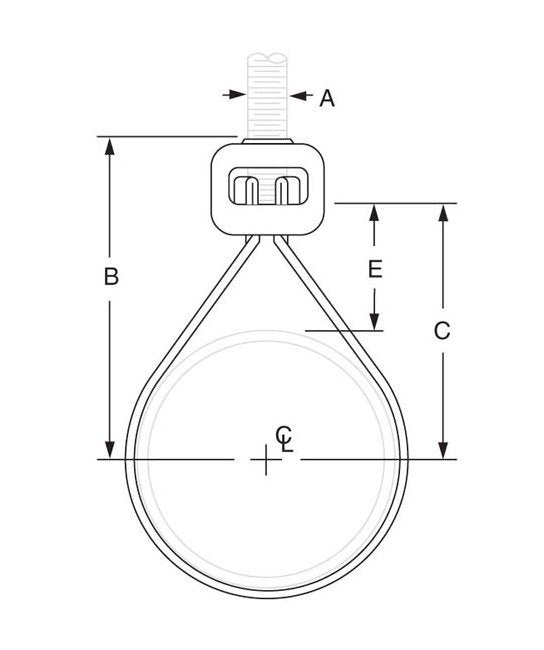

Product Specifications
Specifications Adjustment E
1 7/16 inches
Specifications Dimension B
2 3/4 inches
Specifications Dimension C
2 inches
Specifications Finish
Copper Plated
Specifications Material Adjusting Nut
Malleable Iron
Specifications Material Ring
Carbon Steel
Specifications Maximum Load
400 lbs
Specifications Rod Size A
3/8 inches
Specifications Tube Size
1 inches
Specifications Weight
0.15 lbs
