Adjustable Copper Tubing Ring Hanger

Name: Adjustable Copper Tubing Ring Hanger
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-b8e4e2
Price: 28.99 USD
Availability: OutOfStock

SKU:PIP-b8e4e2

Securely suspend copper tubing with our versatile Adjustable Copper Tubing Ring Hanger. Compliant with federal standards, with a 650 lbs load capacity.

$28.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

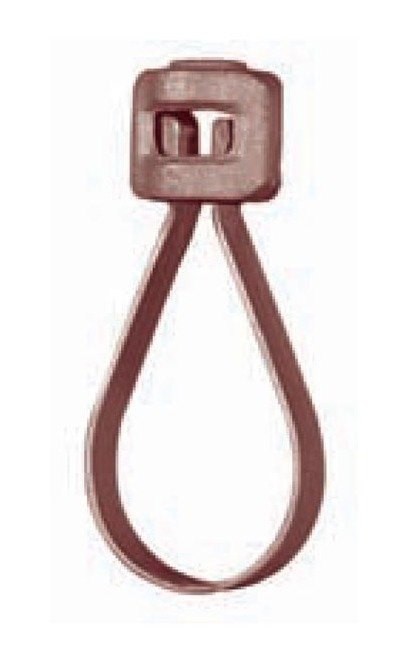

The Adjustable Copper Tubing Ring Hanger is a versatile solution for suspending non-insulated copper tubes. Crafted from carbon steel and malleable iron, with a durable copper plated finish, this hanger offers a size range of 1/2" through 4". With a maximum load capacity of 650 lbs, it features a large sight hole for secure thread engagement, enhanced vertical adjustability, and easy installation. Compliant with Federal Specification A-A-1192A (Type 9), WW-H-171-E (Type 9), and MSS-SP-69 (Type 9), this hanger ensures reliable support for your tubing needs.

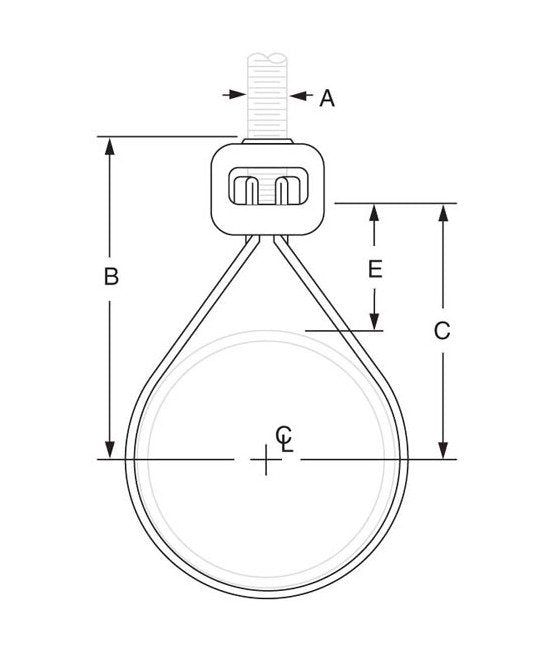

Product Specifications

Specifications Adjustment E

1 11/16 inches

Specifications Dimension B

3 7/8 inches

Specifications Dimension C

3 inches

Specifications Finish

Copper Plated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

650 lbs

Specifications Rod Size A

1/2 inches

Specifications Tube Size

2 1/2 inches

Specifications Weight

0.33 lbs

Adjustable Copper Tubing Ring Hanger
