Adjustable Copper Tubing Ring Hanger

Name: Adjustable Copper Tubing Ring Hanger
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-058be3
Price: 24.99 USD
Availability: OutOfStock

SKU:PIP-058be3

Securely suspend copper tubes with our adjustable hanger - compliant with Federal specifications. Durable, versatile, and competitively priced.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

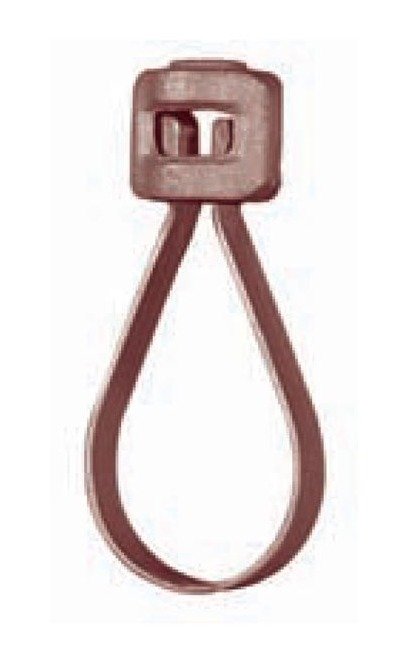

The Adjustable Copper Tubing Ring Hanger is designed for suspending non-insulated stationary copper tubes with precision and ease. Crafted from carbon steel and malleable iron with a copper-plated finish, it offers unparalleled durability and a maximum load capacity of 400 lbs. This hanger, compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards, features a large sight hole for quick thread engagement, vertical adjustability, and easy rod attachment before pipe installation. Ensure a secure and efficient suspension solution with this competitively priced hanger.

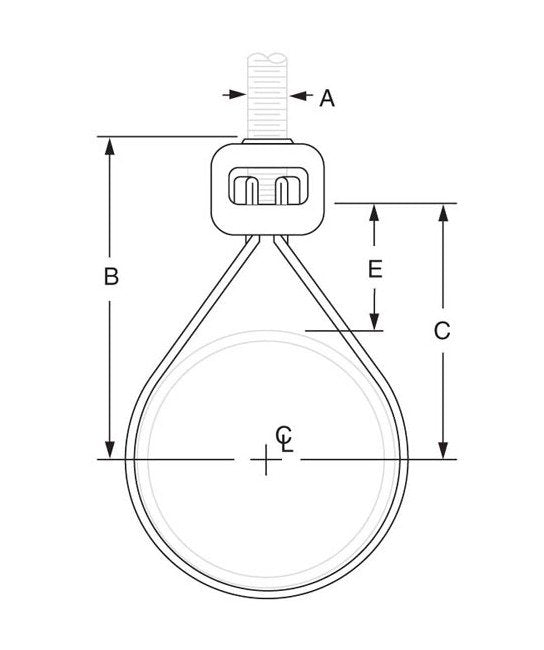

Product Specifications

Specifications Adjustment E

1 9/16 inches

Specifications Dimension B

3 inches

Specifications Dimension C

2 1/4 inches

Specifications Finish

Copper Plated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

1 1/4 inches

Specifications Weight

0.16 lbs
