Adjustable Copper Tubing Ring Hanger

Name: Adjustable Copper Tubing Ring Hanger
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-363c87
Price: 14.99 USD
Availability: OutOfStock

SKU:PIP-363c87

Securely suspend copper tubes with our Adjustable Copper Tubing Ring Hanger. Compliant with industry standards. Ideal for non-insulated stationary copper tubes.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

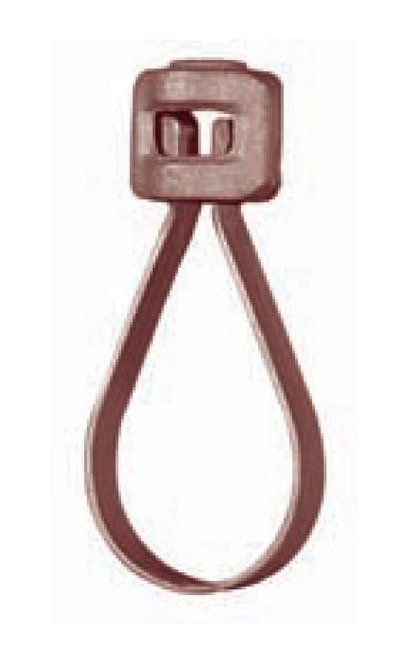

The Adjustable Copper Tubing Ring Hanger is a versatile solution designed for suspending non-insulated stationary copper tubes. Crafted with a carbon steel ring and malleable iron adjusting nut finished with copper plating, this hanger offers a secure support system. With features like a large sight hole for easy thread engagement, vertical adjustability, and a maximum load capacity of 400 lbs, it ensures reliable performance. Compliant with Federal Specification A-A-1192A (Type 9), WW-H-171-E (Type 9), and MSS-SP-69 (Type 9), this hanger meets stringent industry standards.

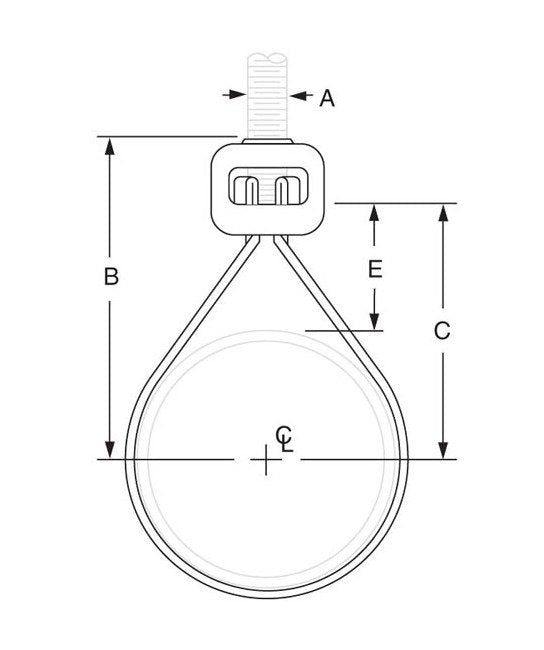

Product Specifications

Specifications Adjustment E

1 7/16 inches

Specifications Dimension B

2 5/8 inches

Specifications Dimension C

1 7/8 inches

Specifications Finish

Copper Plated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

3/4 inches

Specifications Weight

0.15 lbs

Adjustable Copper Tubing Ring Hanger
