Adjustable Copper Tubing Ring Hanger

Name: Adjustable Copper Tubing Ring Hanger
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-2bcf0d
Price: 29.99 USD
Availability: OutOfStock

SKU:PIP-2bcf0d

Adjustable Copper Tubing Ring Hanger - Ideal for suspending non-insulated stationary copper tubes. Strong, adjustable, and compliant with federal standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

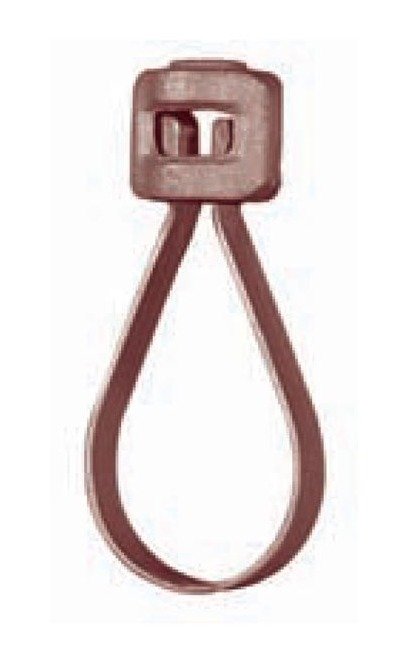

The Adjustable Copper Tubing Ring Hanger is designed with a carbon steel ring and malleable iron adjusting nut, featuring a copper plated finish. With a size range from 1/2" to 4" and a maximum load capacity of 650 lbs, this hanger is ideal for non-insulated stationary copper tube suspension. Noteworthy features include a large sight hole for easy thread engagement, greater vertical adjustability, and competitive pricing. Compliant with Federal Specification A-A-1192A (Type 9), WW-H-171-E (Type 9), and MSS-SP-69 (Type 9), it ensures top-quality performance.

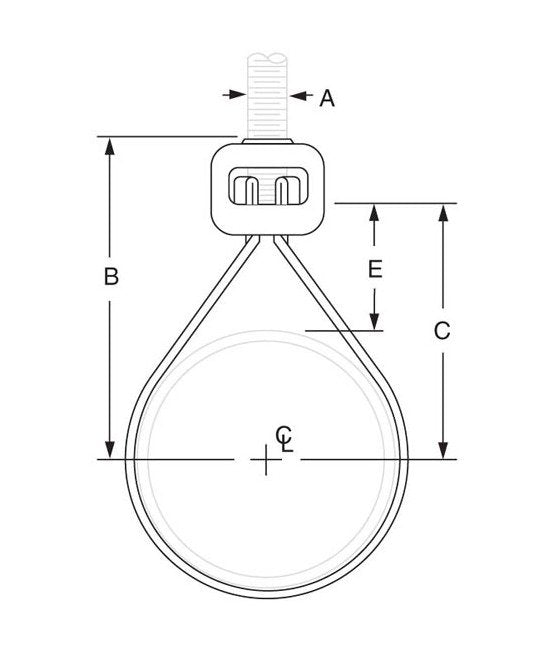

Product Specifications

Specifications Adjustment E

1 13/16 inches

Specifications Dimension B

4 1/4 inches

Specifications Dimension C

3 3/8 inches

Specifications Finish

Copper Plated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

650 lbs

Specifications Rod Size A

1/2 inches

Specifications Tube Size

3 inches

Specifications Weight

0.36 lbs
