Adjustable Copper Tubing Ring Hanger

Name: Adjustable Copper Tubing Ring Hanger
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-8c3f04
Price: 14.99 USD
Availability: OutOfStock

SKU:PIP-8c3f04

Versatile Copper Tubing Hanger, meets Federal standards, 400 lbs load capacity, easy installation.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

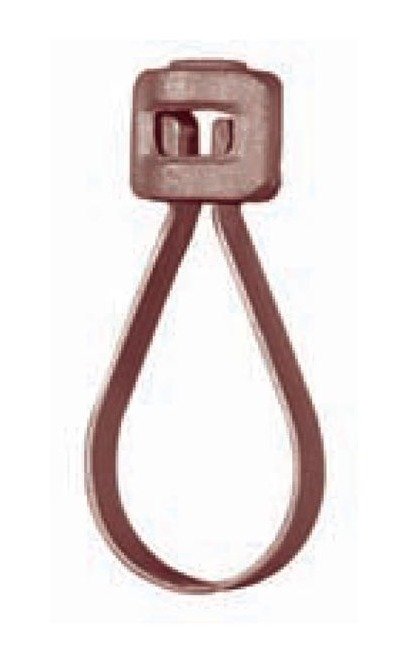

The Adjustable Copper Tubing Ring Hanger offers a versatile solution for suspending non-insulated stationary copper tubes. Crafted from carbon steel and malleable iron with a copper plated finish, it features a large sight hole for easy thread engagement and greater vertical adjustability. This hanger meets Federal Specification A-A-1192A (Type 9), WW-H-171-E (Type 9), and MSS-SP-69 (Type 9) standards, ensuring reliable performance and durability. With a maximum load capacity of 400 lbs, this competitively priced hanger is designed for efficiency and ease of installation.

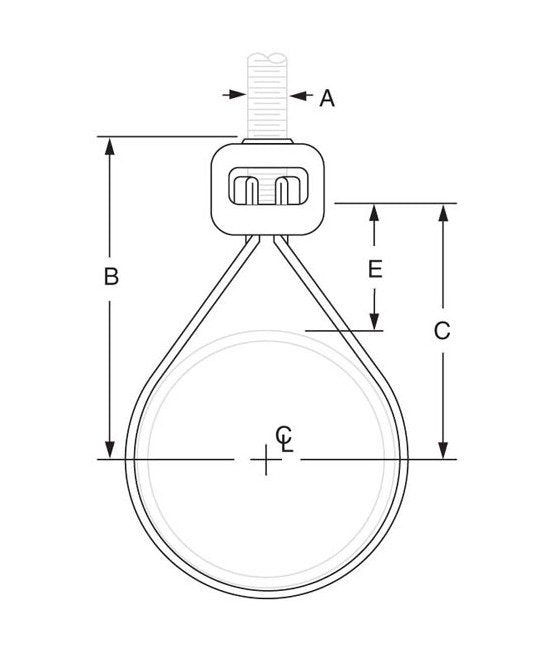

Product Specifications

Specifications Adjustment E

1 9/16 inches

Specifications Dimension B

3 1/8 inches

Specifications Dimension C

2 3/8 inches

Specifications Finish

Copper Plated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

1 1/2 inches

Specifications Weight

0.17 lbs
