Name: Adjustable Copper Tubing Suspension Ring
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-90e416
Price: 15.99 USD
Availability: OutOfStock

SKU:PIP-90e416

Securely suspend copper tubing with our adjustable ring, compliant with top federal standards.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

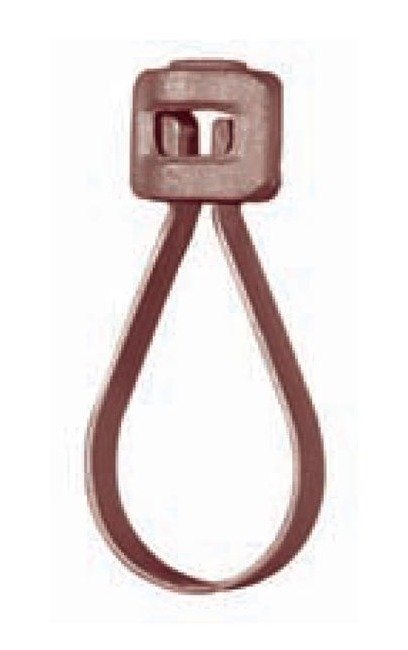

The Adjustable Copper Tubing Suspension Ring is designed for suspending non-insulated stationary copper tubes with precision and reliability. Crafted from carbon steel and malleable iron, this ring features a copper-plated finish for durability. Its large sight hole ensures secure thread engagement, while the adjustable nut allows for greater vertical adjustability. Compliant with Federal Specification A-A-1192A (Type 9), WW-H-171-E (Type 9), and MSS-SP-69 (Type 9), this tubing ring guarantees quality and performance in institutional settings.

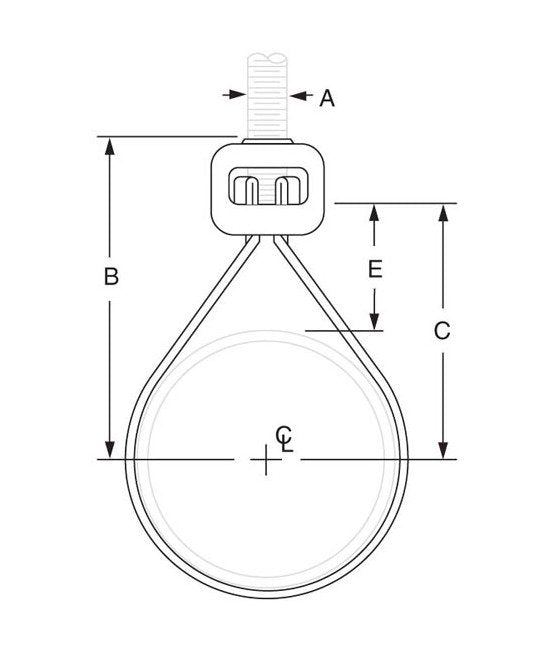

Product Specifications

Specifications Adjustment E

1 7/16 inches

Specifications Dimension B

2 1/2 inches

Specifications Dimension C

1 3/4 inches

Specifications Finish

Copper Plated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

1/2 inches

Specifications Weight

0.14 lbs
