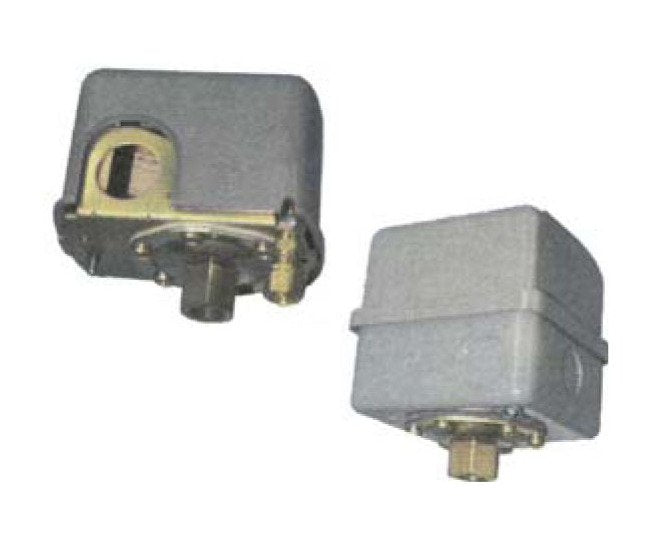

Adjustable Differential Pressure Square D Pressure Switch
Adjustable Differential Pressure Square D Pressure Switch
SKU:SQU-a8af08
Enhance control with the Adjustable Differential Pressure Square D Pressure Switch. UL listed, NEMA1 size enclosure for precise air compressor control.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Adjustable Differential Pressure Square D Pressure Switch
$49.99
Quantity: 1
Claim Your Seller Account
Adjustable Differential Pressure Square D Pressure Switch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision control with the Adjustable Differential Pressure Square D Pressure Switch. This 2 pole type switch features a controllable pressure range from 0 to 200 psi, with an adjustable differential pressure of 20 to 40 psig. It comes in a NEMA1 size enclosure with 1/2" conduit openings, ensuring ample wiring space and easy installation. The switch is UL listed, meeting stringent quality standards. Suitable for air compressor controls with a cut-out pressure range of 65 to 200 psi. Enhance your operations with the reliability of Square D brand.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Factory Set Pressure Factory Set Pressure When Off
175 psi
Factory Set Pressure Factory Set Pressure When On
145 psi
Power Rating 3 Phase Power Rating At 115 V
3 hp
Power Rating 3 Phase Power Rating At 230 V
5 hp
Power Rating Single Phase Power Rating At 115 V
2 hp
Power Rating Single Phase Power Rating At 230 V
3 hp
Power Rating Voltage
115 V | 230 V
Specifications 2 Way Valve
Yes
Specifications Accessory Part Number
SQULDR
Specifications Adjustable Differential Pressure
20 to 40 psig
Specifications Controllable Pressure Range
0 to 200 psi
Specifications Cut Out Pressure Range
65 to 200 psi
Specifications Description For Squldr Accessory
Unloader Valve Fits
Specifications Phase
1 | 3
Specifications Shipping Weight
2.6 Pound
