Adjustable Differential Pressure Square D Pressure Switch - 20-40 psig
Adjustable Differential Pressure Square D Pressure Switch - 20-40 psig
SKU:SQU-a30188
Precisely control air compressor pressure with the Adjustable Differential Pressure Square D Pressure Switch.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Adjustable Differential Pressure Square D Pressure Switch - 20-40 psig
$49.99
Quantity: 1
Claim Your Seller Account
Adjustable Differential Pressure Square D Pressure Switch - 20-40 psig
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

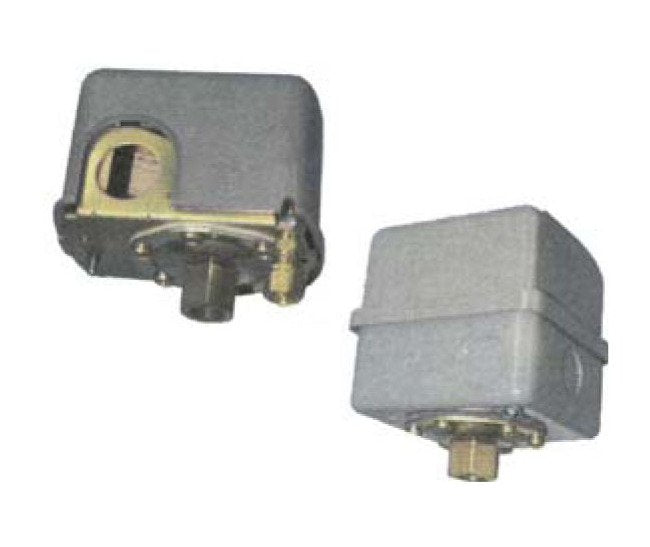

The Adjustable Differential Pressure Square D Pressure Switch is a vital component in air compressor controls, offering a wide controllable pressure range from 0 to 200 psi. With an adjustable differential pressure of 20 to 40 psig and a cut-out pressure range of 65 to 200 psi, this 2 pole type switch ensures precise pressure control. Its NEMA1 size enclosures, UL listing, and 1/2" conduit openings with ample wiring space guarantee safe and efficient operation. Featuring factory set pressures at 145 psi when on and 175 psi when off, this Square D Pressure Switch is a reliable solution for maintaining optimal pressure levels in various applications.
Product Specifications
Factory Set Pressure Factory Set Pressure When Off
175 psi
Factory Set Pressure Factory Set Pressure When On
145 psi
Power Rating 3 Phase Power Rating At 115 V
3 hp
Power Rating 3 Phase Power Rating At 230 V
5 hp
Power Rating Single Phase Power Rating At 115 V
2 hp
Power Rating Single Phase Power Rating At 230 V
3 hp
Power Rating Voltage
115 V | 230 V
Specifications 2 Way Valve
No
Specifications Adjustable Differential Pressure
20 to 40 psig
Specifications Controllable Pressure Range
0 to 200 psi
Specifications Cut Out Pressure Range
65 to 200 psi
Specifications Phase
1 | 3
Specifications Shipping Weight
2.4 Pound
