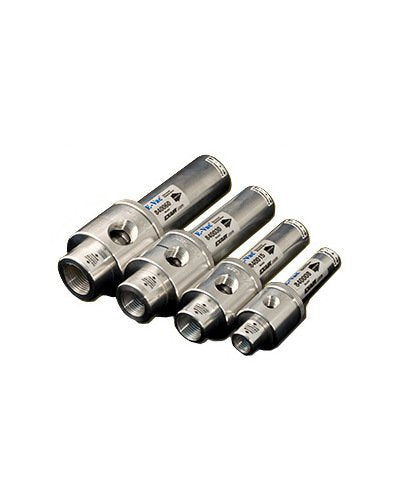

The Adjustable E-Vac Vacuum Generator - 840008 by EXAIR is a versatile, cost-effective solution powered by compressed air. With easily adjustable vacuum and flow rates, this vacuum generator is perfect for a wide range of applications including pick and place, box opening, clamping, lifting, and surface mounting. Constructed from durable 6061 aluminum, this maintenance-free generator offers a compact, portable design, fast response times, and quiet operation. Ideal for institutional and government procurement needs.
Product Specifications
Specifications Advantages
18 Models | Compact, Portable | Durable 6061 Aluminum Construction | Easy to Mount at Point of Use | Fast Response - Increases Cycle Time | Instantaneous Vacuum | Lightweight, Rugged | No Moving Parts - No Maintenance | Quiet | Safe Operation - No Electricity | Single Stage Design Eliminates Fluctuations in Vacuum
Specifications Air Consumption 15 In Hg 51 Kpa
8.2 SCFM | 232.2 SLPM
Specifications Air Consumption 25 In Hg 85 Kpa
12.2 SCFM | 345.5 SLPM
Specifications Air Inlet
1/8 NPT
Specifications Applications
Bag/Package Opening | Carton Forming | Clamping and Chucking | Evacuate Containers | Label Placement | Leak Testing | Mold Evacuation | Paper Alignment and Feed in Printing Equipment | Pick and Place Parts and Equipment | Robotic Tooling | Surface Mounting | Vacuum Filling | Vacuum Forming | Vacuum Liquids for Testing | Vacuum Packaging | Vacuum Press for Wood Veneers and Laminates
Specifications Dimension D
2.00 in | 51 mm
Specifications Dimension F
1.19 in | 30 mm
Specifications Exhaust Port J
1/4 NPT
Specifications Length
4.38 in | 111 mm
Specifications Overall Width
1.31 in | 33 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level 15 In Hg 51 Kpa
89 dBA
Specifications Sound Level 25 In Hg 85 Kpa
104 dBA
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 15
5.80 SCFM | 164.2 SLPM
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 25
5.80 SCFM | 164.2 SLPM
Specifications Vacuum Flow At 1241 Vacuum Level In Hg Kpa Set To
4.33 SCFM | 122.5 SLPM
Specifications Vacuum Flow At 1551 Vacuum Level In Hg Kpa Set To
3.83 SCFM | 108.3 SLPM
Specifications Vacuum Flow At 1861 Vacuum Level In Hg Kpa Set To
2.94 SCFM | 83.2 SLPM
Specifications Vacuum Flow At 2171 Vacuum Level In Hg Kpa Set To
1.93 SCFM | 54.5 SLPM
Specifications Vacuum Flow At 2481 Vacuum Level In Hg Kpa Set To
0.37 SCFM | 10.5 SLPM
Specifications Vacuum Flow At 2585 Vacuum Level In Hg Kpa Set To
0.0 SCFM | 0.0 SLPM
Specifications Vacuum Flow At 310 Vacuum Level In Hg Kpa Set To
5.58 SCFM | 157.9 SLPM
Specifications Vacuum Flow At 620 Vacuum Level In Hg Kpa Set To
5.18 SCFM | 146.5 SLPM
Specifications Vacuum Flow At 931 Vacuum Level In Hg Kpa Set To
4.80 SCFM | 135.9 SLPM
Specifications Vacuum Inlet
1/4 NPT
Specifications Vacuum Inlet Port B Length
0.63 in | 16 mm
Specifications Vacuum Inlet Port B Width
0.72 in | 18 mm
