Adjustable E-Vac Vacuum Generator - 840060
Adjustable E-Vac Vacuum Generator - 840060
SKU:ADJ-2f1eff
Enhance efficiency with the Adjustable E-Vac Vacuum Generator - perfect for a variety of applications. Lightweight, durable, and maintenance-free for reliable performance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Adjustable E-Vac Vacuum Generator - 840060
$499.99
Quantity: 1
Claim Your Seller Account
Adjustable E-Vac Vacuum Generator - 840060
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

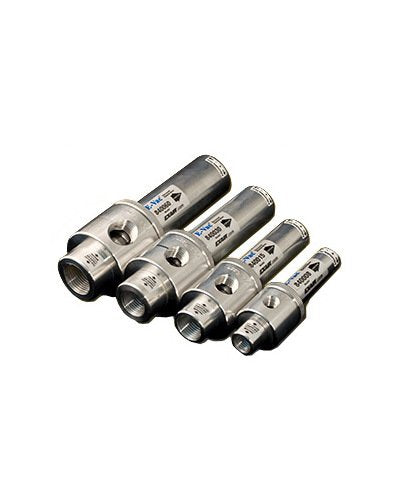

The 840060 Adjustable E-Vac Vacuum Generator by EXAIR is a versatile, low-cost solution for a range of applications. With adjustable vacuum and flow rates, this compressed air-powered vacuum pump is perfect for pick and place, box opening, lifting, and clamping tasks. Its 6061 aluminum construction ensures durability, while the maintenance-free design and absence of moving parts guarantee long-term reliability. This vacuum generator offers a compact, lightweight, and portable design with easy mounting options, making it an ideal choice for institutional and government buyers looking for efficiency and cost-effectiveness in their operations.
Product Specifications
Specifications Advantages
18 Models | Compact, Portable | Durable 6061 Aluminum Construction | Easy to Mount at Point of Use | Fast Response - Increases Cycle Time | Instantaneous Vacuum | Lightweight, Rugged | No Moving Parts - No Maintenance | Quiet | Safe Operation - No Electricity | Single Stage Design Eliminates Fluctuations in Vacuum
Specifications Air Consumption 15 In Hg 51 Kpa
62.7 SCFM | 1775.4 SLPM
Specifications Air Consumption 25 In Hg 85 Kpa
105.2 SCFM | 2978.8 SLPM
Specifications Air Inlet
1/2 NPT
Specifications Applications
Bag/Package Opening | Carton Forming | Clamping and Chucking | Evacuate Containers | Label Placement | Leak Testing | Mold Evacuation | Paper Alignment and Feed in Printing Equipment | Pick and Place Parts and Equipment | Robotic Tooling | Surface Mounting | Vacuum Filling | Vacuum Forming | Vacuum Liquids for Testing | Vacuum Packaging | Vacuum Press for Wood Veneers and Laminates
Specifications Dimension D
2.75 in | 70 mm
Specifications Dimension F
1.56 in | 40 mm
Specifications Exhaust Port J
1 NPT
Specifications Length
6.50 in | 165 mm
Specifications Overall Width
2.19 in | 56 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level 15 In Hg 51 Kpa
107 dBA
Specifications Sound Level 25 In Hg 85 Kpa
114 dBA
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 15
81.00 SCFM | 2293.6 SLPM
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 25
70.00 SCFM | 1982.1 SLPM
Specifications Vacuum Flow At 1241 Vacuum Level In Hg Kpa Set To
45.00 SCFM | 1274.2 SLPM
Specifications Vacuum Flow At 1551 Vacuum Level In Hg Kpa Set To
30.67 SCFM | 868.4 SLPM
Specifications Vacuum Flow At 1861 Vacuum Level In Hg Kpa Set To
18.37 SCFM | 520.1 SLPM
Specifications Vacuum Flow At 2171 Vacuum Level In Hg Kpa Set To
8.38 SCFM | 237.4 SLPM
Specifications Vacuum Flow At 2481 Vacuum Level In Hg Kpa Set To
2.10 SCFM | 59.5 SLPM
Specifications Vacuum Flow At 2585 Vacuum Level In Hg Kpa Set To
0.0 SCFM | 0.0 SLPM
Specifications Vacuum Flow At 310 Vacuum Level In Hg Kpa Set To
66.33 SCFM | 1878.3 SLPM
Specifications Vacuum Flow At 620 Vacuum Level In Hg Kpa Set To
62.33 SCFM | 1765.0 SLPM
Specifications Vacuum Flow At 931 Vacuum Level In Hg Kpa Set To
55.50 SCFM | 1571.5 SLPM
Specifications Vacuum Inlet
3/4 NPT
Specifications Vacuum Inlet Port B Length
0.75 in | 19 mm
Specifications Vacuum Inlet Port B Width
1.47 in | 37 mm
