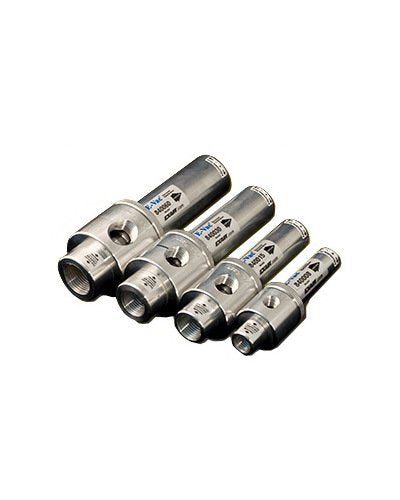

Adjustable E-Vac Vacuum Generator 840060M
Adjustable E-Vac Vacuum Generator 840060M
SKU:ADJ-f36818
Enhance productivity with the 840060M - Adjustable E-Vac Vacuum Generator for versatile industrial applications.
Regular price
$479.99
Regular price
Sale price
$479.99
Unit price
per
Initiate Order
Adjustable E-Vac Vacuum Generator 840060M
$479.99
Quantity: 1
Claim Your Seller Account
Adjustable E-Vac Vacuum Generator 840060M
$479.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 840060M Adjustable E-Vac Vacuum Generator by EXAIR offers a versatile solution for a wide range of industrial applications. This low-cost, compressed air-powered vacuum generator features adjustable vacuum and flow rates to precisely meet the needs of pick and place, clamping, lifting, and other tasks. Made of durable 6061 aluminum, it requires no maintenance due to its innovative single-stage design with no moving parts. With a compact and portable design, this vacuum generator provides instantaneous vacuum, fast response times, and quiet operation, enhancing productivity and efficiency in various processes.
Product Specifications
Specifications Advantages
18 Models | Compact, Portable | Durable 6061 Aluminum Construction | Easy to Mount at Point of Use | Fast Response - Increases Cycle Time | Instantaneous Vacuum | Lightweight, Rugged | No Moving Parts - No Maintenance | Quiet | Safe Operation - No Electricity | Single Stage Design Eliminates Fluctuations in Vacuum
Specifications Air Consumption 15 In Hg 51 Kpa
62.7 SCFM | 1775.4 SLPM
Specifications Air Consumption 25 In Hg 85 Kpa
105.2 SCFM | 2978.8 SLPM
Specifications Air Inlet
1/2 NPT
Specifications Applications
Bag/Package Opening | Carton Forming | Clamping and Chucking | Evacuate Containers | Label Placement | Leak Testing | Mold Evacuation | Paper Alignment and Feed in Printing Equipment | Pick and Place Parts and Equipment | Robotic Tooling | Surface Mounting | Vacuum Filling | Vacuum Forming | Vacuum Liquids for Testing | Vacuum Packaging | Vacuum Press for Wood Veneers and Laminates
Specifications Dimension D
2.75 in | 70 mm
Specifications Dimension F
1.56 in | 40 mm
Specifications Exhaust Port J
1 NPT
Specifications Exhaust Port K
1 NPS
Specifications Length
6.50 in | 165 mm
Specifications Overall Length
13.94 in | 354 mm
Specifications Overall Width
2.19 in | 56 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level 15 In Hg 51 Kpa
85 dBA
Specifications Sound Level 25 In Hg 85 Kpa
92 dBA
Specifications Straight Through Muffler Width
2.00 in | 51 mm
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 15
81.00 SCFM | 2293.6 SLPM
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 25
70.00 SCFM | 1982.1 SLPM
Specifications Vacuum Flow At 1241 Vacuum Level In Hg Kpa Set To
45.00 SCFM | 1274.2 SLPM
Specifications Vacuum Flow At 1551 Vacuum Level In Hg Kpa Set To
30.67 SCFM | 868.4 SLPM
Specifications Vacuum Flow At 1861 Vacuum Level In Hg Kpa Set To
18.37 SCFM | 520.1 SLPM
Specifications Vacuum Flow At 2171 Vacuum Level In Hg Kpa Set To
8.38 SCFM | 237.4 SLPM
Specifications Vacuum Flow At 2481 Vacuum Level In Hg Kpa Set To
2.10 SCFM | 59.5 SLPM
Specifications Vacuum Flow At 2585 Vacuum Level In Hg Kpa Set To
0.0 SCFM | 0.0 SLPM
Specifications Vacuum Flow At 310 Vacuum Level In Hg Kpa Set To
66.33 SCFM | 1878.3 SLPM
Specifications Vacuum Flow At 620 Vacuum Level In Hg Kpa Set To
62.33 SCFM | 1765.0 SLPM
Specifications Vacuum Flow At 931 Vacuum Level In Hg Kpa Set To
55.50 SCFM | 1571.5 SLPM
Specifications Vacuum Inlet
3/4 NPT
Specifications Vacuum Inlet Port B Length
0.75 in | 19 mm
Specifications Vacuum Inlet Port B Width
1.47 in | 37 mm
