Adjustable E-Vac Vacuum Generator - Ideal for Industrial Applications
Adjustable E-Vac Vacuum Generator - Ideal for Industrial Applications
SKU:ADJ-dae6fd
Enhance productivity and safety with the Adjustable E-Vac Vacuum Generator - perfect for industrial applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Adjustable E-Vac Vacuum Generator - Ideal for Industrial Applications
$349.99
Quantity: 1
Claim Your Seller Account
Adjustable E-Vac Vacuum Generator - Ideal for Industrial Applications
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

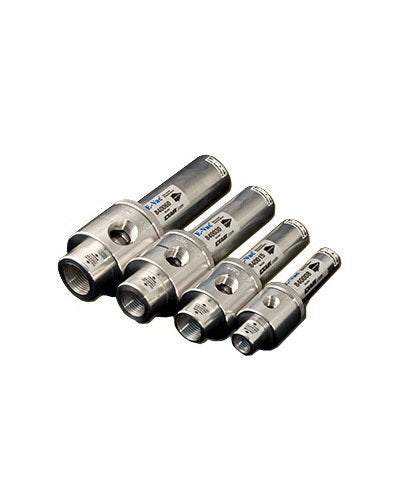

Enhance productivity with the Adjustable E-Vac Vacuum Generator by EXAIR. This compressed air powered vacuum generator offers adjustable vacuum and flow rates perfect for pick and place, box opening, clamping, lifting, and more. With 18 models available, made from durable 6061 aluminum, and featuring a single-stage design for consistent vacuum, this unit is compact, lightweight, and maintenance-free. Increase efficiency and safety in your industrial operations with the Adjustable E-Vac.
Product Specifications
Specifications Advantages
18 Models | Compact, Portable | Durable 6061 Aluminum Construction | Easy to Mount at Point of Use | Fast Response - Increases Cycle Time | Instantaneous Vacuum | Lightweight, Rugged | No Moving Parts - No Maintenance | Quiet | Safe Operation - No Electricity | Single Stage Design Eliminates Fluctuations in Vacuum
Specifications Air Consumption 15 In Hg 51 Kpa
26.4 SCFM | 747.5 SLPM
Specifications Air Consumption 25 In Hg 85 Kpa
44.8 SCFM | 1268.6 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Bag/Package Opening | Carton Forming | Clamping and Chucking | Evacuate Containers | Label Placement | Leak Testing | Mold Evacuation | Paper Alignment and Feed in Printing Equipment | Pick and Place Parts and Equipment | Robotic Tooling | Surface Mounting | Vacuum Filling | Vacuum Forming | Vacuum Liquids for Testing | Vacuum Packaging | Vacuum Press for Wood Veneers and Laminates
Specifications Dimension D
2.50 in | 64 mm
Specifications Dimension F
1.44 in | 37 mm
Specifications Exhaust Port J
3/4 NPT
Specifications Length
6.19 in | 157 mm
Specifications Overall Width
1.94 in | 49 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level 15 In Hg 51 Kpa
99 dBA
Specifications Sound Level 25 In Hg 85 Kpa
107 dBA
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 15
36.70 SCFM | 1039.2 SLPM
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 25
32.00 SCFM | 906.1 SLPM
Specifications Vacuum Flow At 1241 Vacuum Level In Hg Kpa Set To
20.92 SCFM | 592.3 SLPM
Specifications Vacuum Flow At 1551 Vacuum Level In Hg Kpa Set To
14.63 SCFM | 414.1 SLPM
Specifications Vacuum Flow At 1861 Vacuum Level In Hg Kpa Set To
9.90 SCFM | 280.3 SLPM
Specifications Vacuum Flow At 2171 Vacuum Level In Hg Kpa Set To
6.13 SCFM | 173.7 SLPM
Specifications Vacuum Flow At 2481 Vacuum Level In Hg Kpa Set To
1.19 SCFM | 33.8 SLPM
Specifications Vacuum Flow At 2585 Vacuum Level In Hg Kpa Set To
0.0 SCFM | 0.0 SLPM
Specifications Vacuum Flow At 310 Vacuum Level In Hg Kpa Set To
29.00 SCFM | 821.2 SLPM
Specifications Vacuum Flow At 620 Vacuum Level In Hg Kpa Set To
26.83 SCFM | 759.8 SLPM
Specifications Vacuum Flow At 931 Vacuum Level In Hg Kpa Set To
24.12 SCFM | 682.9 SLPM
Specifications Vacuum Inlet
1/2 NPT
Specifications Vacuum Inlet Port B Length
0.75 in | 19 mm
Specifications Vacuum Inlet Port B Width
1.22 in | 31 mm
