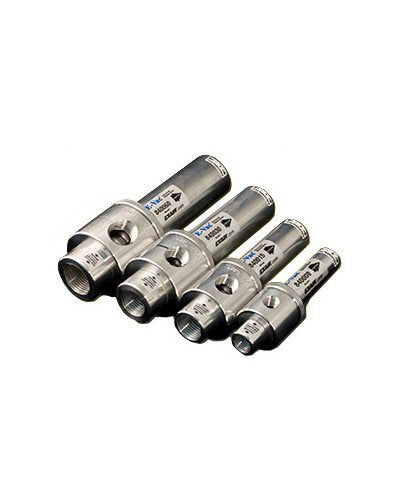

Adjustable E-Vac Vacuum Generator with Muffler
Adjustable E-Vac Vacuum Generator with Muffler
SKU:ADJ-b87611
EXAIR 840015M: Adjustable E-Vac Vacuum Generator for industrial pick and place applications
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Adjustable E-Vac Vacuum Generator with Muffler
$299.99
Quantity: 1
Claim Your Seller Account
Adjustable E-Vac Vacuum Generator with Muffler
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable E-Vac Vacuum Generator with Straight Through Muffler, part number 840015M, by EXAIR, provides a cost-effective, compressed air-powered solution for a wide range of industrial applications. This maintenance-free vacuum pump features adjustable vacuum and flow rates, making it ideal for tasks such as pick and place, clamping, lifting, and surface mounting. Constructed from durable 6061 aluminum, this compact and lightweight unit offers fast response, instantaneous vacuum, and quiet operation. With a single-stage design and no moving parts, it ensures reliability and eliminates fluctuations, enhancing operational efficiency.
Product Specifications
Specifications Advantages
18 Models | Compact, Portable | Durable 6061 Aluminum Construction | Easy to Mount at Point of Use | Fast Response - Increases Cycle Time | Instantaneous Vacuum | Lightweight, Rugged | No Moving Parts - No Maintenance | Quiet | Safe Operation - No Electricity | Single Stage Design Eliminates Fluctuations in Vacuum
Specifications Air Consumption 15 In Hg 51 Kpa
15.4 SCFM | 436.1 SLPM
Specifications Air Consumption 25 In Hg 85 Kpa
25.9 SCFM | 733.4 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Bag/Package Opening | Carton Forming | Clamping and Chucking | Evacuate Containers | Label Placement | Leak Testing | Mold Evacuation | Paper Alignment and Feed in Printing Equipment | Pick and Place Parts and Equipment | Robotic Tooling | Surface Mounting | Vacuum Filling | Vacuum Forming | Vacuum Liquids for Testing | Vacuum Packaging | Vacuum Press for Wood Veneers and Laminates
Specifications Dimension D
2.38 in | 60 mm
Specifications Dimension F
1.31 in | 33 mm
Specifications Exhaust Port J
1/2 NPT
Specifications Exhaust Port K
1/2 NPS
Specifications Length
5.44 in | 138 mm
Specifications Overall Length
9.69 in | 246 mm
Specifications Overall Width
1.56 in | 40 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level 15 In Hg 51 Kpa
77 dBA
Specifications Sound Level 25 In Hg 85 Kpa
89 dBA
Specifications Straight Through Muffler Width
1.25 in | 32 mm
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 15
18.70 SCFM | 529.5 SLPM
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 25
18.00 SCFM | 509.7 SLPM
Specifications Vacuum Flow At 1241 Vacuum Level In Hg Kpa Set To
12.13 SCFM | 343.3 SLPM
Specifications Vacuum Flow At 1551 Vacuum Level In Hg Kpa Set To
8.98 SCFM | 254.1 SLPM
Specifications Vacuum Flow At 1861 Vacuum Level In Hg Kpa Set To
5.65 SCFM | 160.0 SLPM
Specifications Vacuum Flow At 2171 Vacuum Level In Hg Kpa Set To
2.69 SCFM | 76.1 SLPM
Specifications Vacuum Flow At 2481 Vacuum Level In Hg Kpa Set To
0.55 SCFM | 15.6 SLPM
Specifications Vacuum Flow At 2585 Vacuum Level In Hg Kpa Set To
0.0 SCFM | 0.0 SLPM
Specifications Vacuum Flow At 310 Vacuum Level In Hg Kpa Set To
16.53 SCFM | 467.9 SLPM
Specifications Vacuum Flow At 620 Vacuum Level In Hg Kpa Set To
15.70 SCFM | 444.6 SLPM
Specifications Vacuum Flow At 931 Vacuum Level In Hg Kpa Set To
14.18 SCFM | 401.4 SLPM
Specifications Vacuum Inlet
1/2 NPT
Specifications Vacuum Inlet Port B Length
0.63 in | 16 mm
Specifications Vacuum Inlet Port B Width
0.97 in | 25 mm
