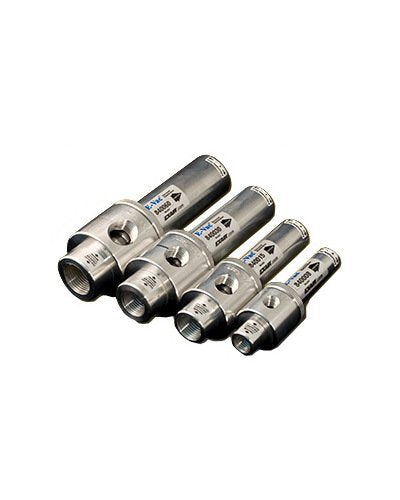

The 840030M Adjustable E-Vac Vacuum Generator with Straight Through Muffler by EXAIR offers a cost-effective and versatile solution for various industrial applications. This vacuum generator allows for easy adjustment of vacuum and flow rates to meet specific requirements, making it ideal for tasks such as pick and place, clamping, lifting, chucking, and more. Crafted from durable 6061 aluminum, this compact and portable device ensures a maintenance-free operation with its single-stage design that eliminates vacuum fluctuations. With fast response times, instantaneous vacuum capabilities, and a quiet, electricity-free operation, the Adjustable E-Vac enhances productivity while providing a safe and reliable vacuum solution.
Product Specifications
Specifications Advantages
18 Models | Compact, Portable | Durable 6061 Aluminum Construction | Easy to Mount at Point of Use | Fast Response - Increases Cycle Time | Instantaneous Vacuum | Lightweight, Rugged | No Moving Parts - No Maintenance | Quiet | Safe Operation - No Electricity | Single Stage Design Eliminates Fluctuations in Vacuum
Specifications Air Consumption 15 In Hg 51 Kpa
26.4 SCFM | 747.5 SLPM
Specifications Air Consumption 25 In Hg 85 Kpa
44.8 SCFM | 1268.6 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Bag/Package Opening | Carton Forming | Clamping and Chucking | Evacuate Containers | Label Placement | Leak Testing | Mold Evacuation | Paper Alignment and Feed in Printing Equipment | Pick and Place Parts and Equipment | Robotic Tooling | Surface Mounting | Vacuum Filling | Vacuum Forming | Vacuum Liquids for Testing | Vacuum Packaging | Vacuum Press for Wood Veneers and Laminates
Specifications Dimension D
2.50 in | 64 mm
Specifications Dimension F
1.44 in | 37 mm
Specifications Exhaust Port J
3/4 NPT
Specifications Exhaust Port K
3/4 NPS
Specifications Length
6.19 in | 157 mm
Specifications Overall Length
13.63 in | 346 mm
Specifications Overall Width
1.94 in | 49 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level 15 In Hg 51 Kpa
74 dBA
Specifications Sound Level 25 In Hg 85 Kpa
82 dBA
Specifications Straight Through Muffler Width
2.00 in | 51 mm
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 15
36.70 SCFM | 1039.2 SLPM
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa Set To 25
32.00 SCFM | 906.1 SLPM
Specifications Vacuum Flow At 1241 Vacuum Level In Hg Kpa Set To
20.92 SCFM | 592.3 SLPM
Specifications Vacuum Flow At 1551 Vacuum Level In Hg Kpa Set To
14.63 SCFM | 414.1 SLPM
Specifications Vacuum Flow At 1861 Vacuum Level In Hg Kpa Set To
9.90 SCFM | 280.3 SLPM
Specifications Vacuum Flow At 2171 Vacuum Level In Hg Kpa Set To
6.13 SCFM | 173.7 SLPM
Specifications Vacuum Flow At 2481 Vacuum Level In Hg Kpa Set To
1.19 SCFM | 33.8 SLPM
Specifications Vacuum Flow At 2585 Vacuum Level In Hg Kpa Set To
0.0 SCFM | 0.0 SLPM
Specifications Vacuum Flow At 310 Vacuum Level In Hg Kpa Set To
29.00 SCFM | 821.2 SLPM
Specifications Vacuum Flow At 620 Vacuum Level In Hg Kpa Set To
26.83 SCFM | 759.8 SLPM
Specifications Vacuum Flow At 931 Vacuum Level In Hg Kpa Set To
24.12 SCFM | 682.9 SLPM
Specifications Vacuum Inlet
1/2 NPT
Specifications Vacuum Inlet Port B Length
0.75 in | 19 mm
Specifications Vacuum Inlet Port B Width
1.22 in | 31 mm
