Adjustable Fiber Optic Strand Storage Brackets
Adjustable Fiber Optic Strand Storage Brackets
SKU:AER-16378c
Enhance fiber optic cable management with Adjustable Plastic Sno-Shoe® Brackets: Prevents microbends, ensures secure positioning, and offers user-friendly installation features.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Fiber Optic Strand Storage Brackets
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Fiber Optic Strand Storage Brackets
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

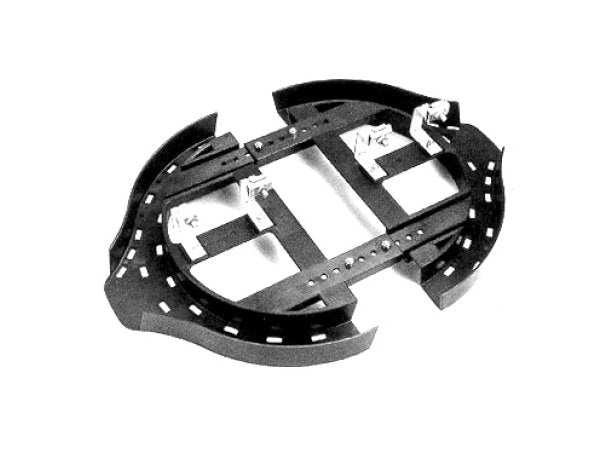

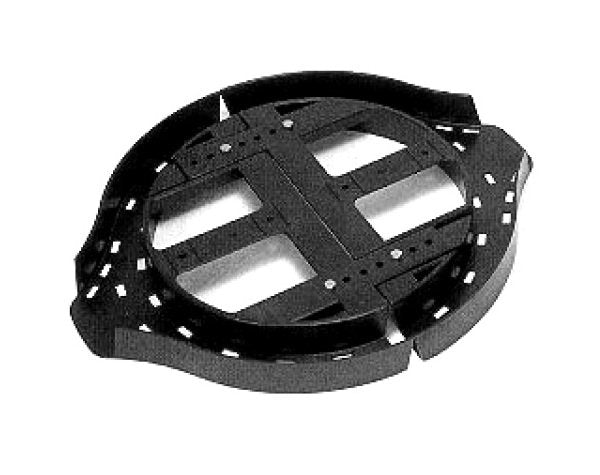

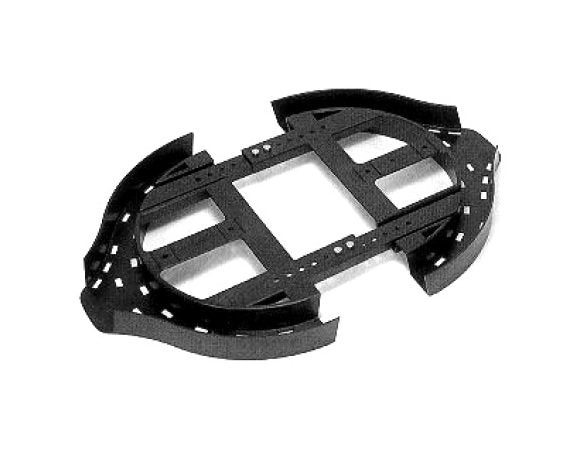

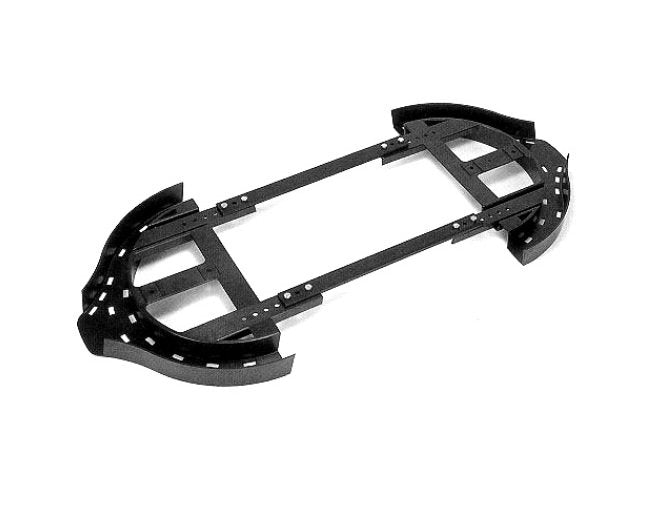

The Plastic Adjustable Sno-Shoe® Fiber Optic Strand Storage Brackets are an essential solution for aerial fiber optic cable management. Designed to prevent microbends and ensure consistency in fiber loops, these brackets offer a non-conductive plastic construction. The patented Cable Trough™ features countersunk nut wells for convenient installation and multiple slots for secure positioning and drainage. With adjustable captive length, stackable design, and compatibility for heavy-duty tie wraps or stainless steel straps, these brackets provide a versatile and user-friendly solution for spacing challenges on poles.
Product Specifications
Benefits Features
Prevents microbends in fiber optic cable.Provides consistency and regularity in fiber optic loops.Solution to spacing problems on poles.The plastic material design makes the Sno-Shoe non-conductive.Built-in user friendly design features include:Countersunk nut wells for easy one tool installation.The captive design of the patented Cable Trough™ allows the installer to simply lay the cable in the trough, leaving both hands free to secure the cable unit. The multiple slots in the cable trough allow you to secure the cable in numerous locations and also allows for water and ice drainage.Stack ability: the Plastic Sno-Shoe can be stacked in multiple cable configurations to accommodate additional fiber mount tiering.The multiple slots in the patented Cable Trough™ allow you to secure the cable with either heavy duty tie wraps or stainless steel straps. These slots also allow you to secure additional cable to the unit in expansion situations without having to remove any of the previously installed cable from the unit.
Specifications Adjustable Captive Length Cm
64
Specifications Adjustable Captive Length In
25
Specifications Channel Width Cm
5 x 5
Specifications Channel Width In
2 x 2
Specifications Circle Diameter Cm
40.6
Specifications Circle Diameter In
16
