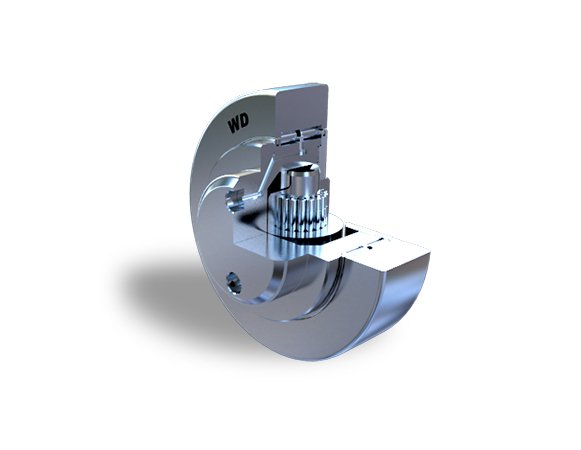

Adjustable Heavy Duty Combined Roller Bearings

Name: Adjustable Heavy Duty Combined Roller Bearings
Brand: WD Bearings
SKU: COM-ad0d54
Price: 49.99 USD
Availability: OutOfStock

SKU:COM-ad0d54

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Basic Load Rating Basic Co Load Rating

388 kN

Basic Load Rating Basic C Load Rating

213 kN

Basic Load Rating Dynamic Ca Basic Load Rating

85 kN

Basic Load Rating Static Coa Basic Load Rating

133 kN

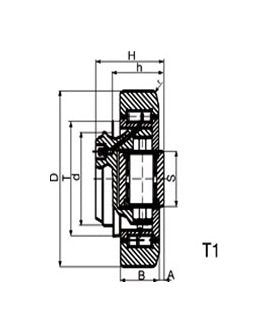

Specifications Bore Diameter

80 mm

Specifications Dimension A

5 to 8 mm

Specifications Dimension H

69 to 72 mm

Specifications Dimension R

3 mm

Specifications Dimension S

50 mm

Specifications Dimension T

113 mm

Specifications Outside Diameter

165 mm

Specifications Overall Bearing Width

40 mm

Specifications Reference Code Italy A

4.0089

Specifications Reference Code Italy B

MR.038A

Specifications Type

Adjustable Heavy Duty Combined Roller Bearings
