Adjustable Micro Control Head Cable
Adjustable Micro Control Head Cable
SKU:PUS-16ba30

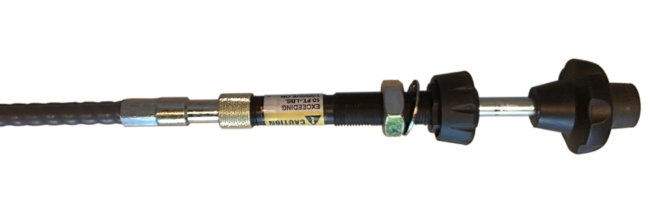

Adjustable Micro Control Head Cable with stainless steel wire, trim-to-length design, and precise control. Up to 3" travel.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Micro Control Head Cable
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Micro Control Head Cable
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Micro Control Head Cable offers precise control with a stainless steel solid wire innermember. Featuring a trim-to-length design, it allows up to 3" travel, with a minimum bend radius of 5" and a 20 lb pull load rating. Ideal for applications requiring micro-adjustments and durability.
Product Specifications
Specifications Cable Travel
1 " | 2 " | 3 "
Specifications Conduit Size
Very Light Duty
Specifications Conduit Type
Utility

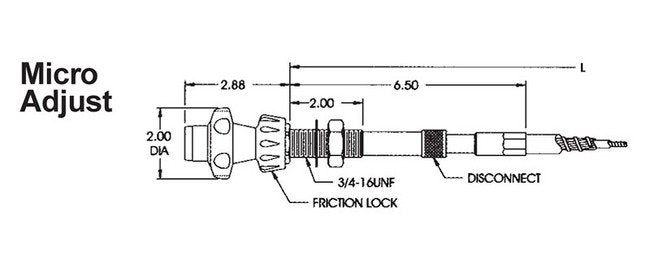

Specifications Control Head Type
Micro Adjust
Specifications Micro Adjust Only Cable Options
D - Disconnect Feature | F - Friction Lock Accessory
Specifications Output End Fittings
2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged
Specifications Seal Options
5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls
Specifications Stainless Steel Options
Carbon Steel Fittings
CAGE
0T9L4
NAICS
332510
PSC
4030
