Adjustable Output Voltage Range AEU 65 Series Power Supply
Adjustable Output Voltage Range AEU 65 Series Power Supply
SKU:POW-c56dc3
Reliable AEU 65 Series power supply with adjustable 4.75-5.25 V output range, ideal for industrial and telecom applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Adjustable Output Voltage Range AEU 65 Series Power Supply
$69.99
Quantity: 1
Claim Your Seller Account
Adjustable Output Voltage Range AEU 65 Series Power Supply
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

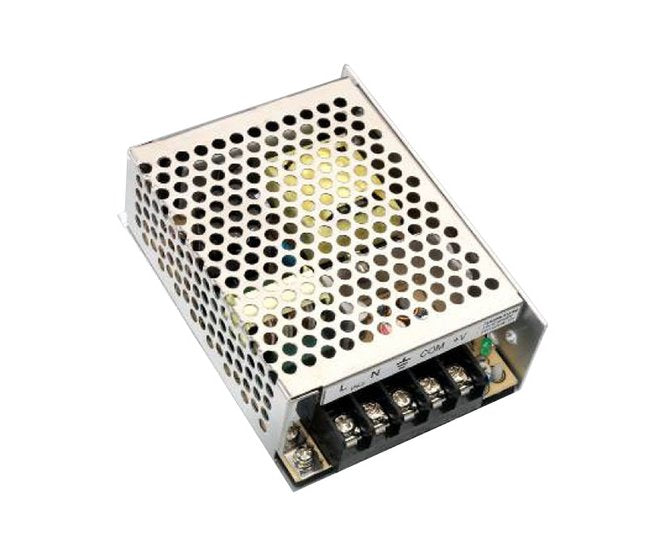

The Adjustable Output Voltage Range AEU 65 Series Switch Mode Power Supply is a reliable solution designed for industrial and telecommunications applications. With compliance to European EMC standards and a wide input voltage range, this power supply offers excellent performance and efficiency. Featuring a single output with an adjustable voltage range of 4.75 to 5.25 V, this power supply ensures stable and regulated power delivery for your equipment. With a compact design and robust safety features, the AEU 65 Series is a dependable choice for various power supply needs.
Product Specifications
Emc And Safety Specifications At 25 C Emi Emissions
Compliance to EN55022, CISPR22 Class B (Conducted & Radiated)
Emc And Safety Specifications At 25 C Ems Immunity
Compliance to EN61000-4-2, 3-6, 8 & 11; EN55024 heavy, light industry level, criteria A
Emc And Safety Specifications At 25 C Harmonic Current
Compliance to EN61000-3-2, 3
Emc And Safety Specifications At 25 C Note For Emc And Safety Sp
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
Emc And Safety Specifications At 25 C Safety Approval
UL 60950-1, (Insulation Class -1)
Environmental Specifications At 25 C Non Condensing Relative Ope
20 to 90 %
Environmental Specifications At 25 C Non Condensing Relative Sto
10 to 95 %
Environmental Specifications At 25 C Operating Temperature At Fu
-20 to 50 ºC
Environmental Specifications At 25 C Storage Temperature
-40 to 85 ºC
Environmental Specifications At 25 C Temperature Drift 0 To 50 C
< 0.03 %/ºC
Environmental Specifications At 25 C Vibration
10 to 500 Hz, 2G 10 min/cycle, period of 60 min, each X, Y & Z axis
General Specifications At 25 C Alternating Current Ac Dielectric
0.5 kV
General Specifications At 25 C Cooling
Natural Convection
General Specifications At 25 C Direct Current Dc Dielectric Stre
4.3 kV

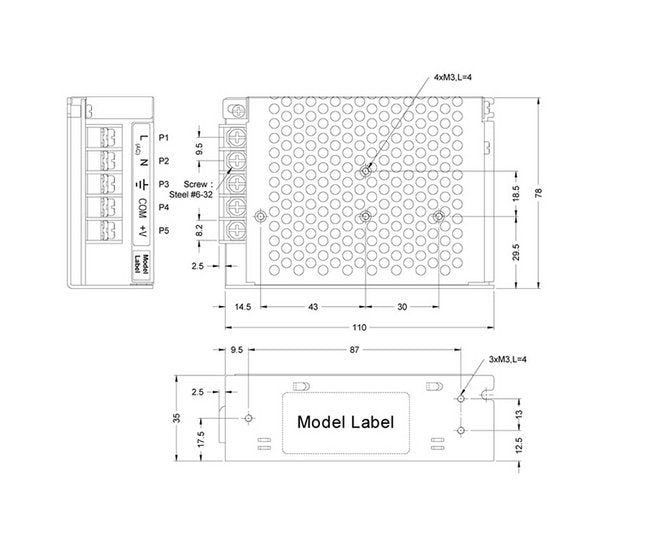

General Specifications At 25 C Height
35.0 mm | 1.38 in
General Specifications At 25 C Isolation Resistance At 500 Vdc I
100 MO
General Specifications At 25 C Isolation Resistance At 500 Vdc O
100 MO
General Specifications At 25 C Length
110 mm | 4.3 in
General Specifications At 25 C Minimum Mean Time Between Failure
250 K hr
General Specifications At 25 C Warranty
3 years
General Specifications At 25 C Weight
200 g
General Specifications At 25 C Width
78 mm | 3.1 in
Input Characteristics At 25 C Alternating Current Ac Input Volta
90 to 264 V
Input Characteristics At 25 C Direct Current Dc Input Voltage
127 to 373 V
Input Characteristics At 25 C Input Current At 115 Vac Root Mean
1.6 A
Input Characteristics At 25 C Input Current At 230 Vac
0.8 A
Input Characteristics At 25 C Input Frequency Range
47 to 63 Hz
Input Characteristics At 25 C Leakage Current At 240 Vac
< 2.4 mA
Input Characteristics At 25 C Maximum Inrush Current At 115 Vac
30 A
Input Characteristics At 25 C Maximum Inrush Current At 230 Vac
60 A
Note Note

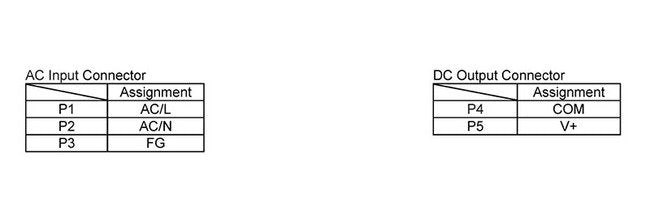

All I/O connection shall Follow specified Model Label.Maximum Temperature at Full Load 50 ºC
Output Characteristics At 25 C Adjustable Output Voltage Range
4.75 to 5.25 V
Output Characteristics At 25 C Direct Current Dc Output Voltage
5 V
Output Characteristics At 25 C Direct Current Dc Over Voltage Pr
5.75 to 6.75 V
Output Characteristics At 25 C Direct Current Dc Voltage Toleran
±2.0 %
Output Characteristics At 25 C Output Power Convection
50 W
Output Characteristics At 25 C Ripple And Noise Voltage At Peak
60 mV
